Product Details:
Payment & Shipping Terms:
|
| Power Type: | Diesel | Rated Capacity: | 6000 Kg |
|---|---|---|---|
| Load Center: | 600 Mm | Mast Lifting Height: | 3000 Mm |
| Max. Grade Ability: | 20% | Free Lift Height: | 197 Mm |
| Fork Size(L*W*T): | 1220×150×55 Mm | Min Turning Radius: | 3300 Mm |
| Max Driving Speeds: | 26 / 28 Km/h | Total Weight: | 8640 Kg |
| High Light: | material handling forklift,power lift forklift |
||

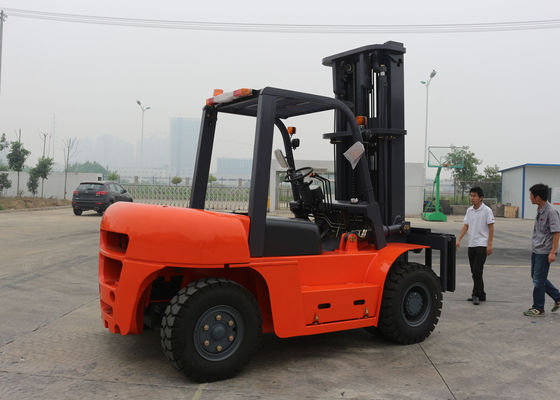

3 Stages Mast 6 Ton Diesel Manual Hydraulic Forklift With 3M to 6M Lifting Height
Product Features:
A. Engine
1.) High efficient ISUZU/Xichai/Chaochai engine
B. Driving Axle
2.) Eqiupment with heavy -duty driving axle with big bearing capacity and enhanced oil -cooled braking system, increase the reliabillgy and durability
C. Automatic Instrument
3.) Centralize controlled lever and stimulant automatic instrument is easy operated and has beautiful appearance
D. Advanced Hydraulic System
4. ) Advanced hydraulic system ,2-speed lifting system can automatically adjust its lifting speed according to the goods weight ,electric controlled valve can work safety and efficiently
E. Automatic Stepless Speed
5.) Full automatic stepless speed adjustable electric controlled transmission gear box guarantee the forklift with superior travel and track performance.
Standard Configuration:
Diesel forklift truck with 6,000kg load capacity
Equipped with China engine 6110 Or ISUZU 6BG,Hydraulic transmission with TCM-technology
Standard with 3-stage wide-view mast, lifting height is 3,000mm,6000mm
Pneumatic tires, 1220mm or 2000mm forks,Safety seat,Free tool box and spare parts.
Specifications:
|
Model |
Unit |
CPCD60 |
|
|
Power type |
|
Diesel |
|
|
Rated capacity |
kg |
5000 |
|
|
Load center |
mm |
600 |
|
|
Mast Lifting height |
mm |
3000 |
|
|
Free lift height |
mm |
197 |
|
|
Fork size(L*W*T) |
mm |
1220×150×55 |
|
|
Tilting Angles(Front/Rear) |
deg |
6°/12° |
|
|
Front overhang |
mm |
590 |
|
|
Exterior Size |
Length without fork |
mm |
4375 |
|
Overall width |
mm |
1995 |
|
|
Mast drop |
mm |
2500 |
|
|
Max. lift |
mm |
4420 |
|
|
Front-wheel Overhead |
mm |
2450 |
|
|
Min Turning Radius |
mm |
3300 |
|
|
Min. intersecting aisle |
mm |
3000 |
|
|
Speeds |
Max Driving speeds |
km/h |
26/28 |
|
Lifting speeds |
mm/s |
500/590 |
|
|
Lowering speeds |
mm/s |
≤600 |
|
|
Max. grade ability |
% |
19 |
|
|
Total weight |
kg |
8640 |
|
|
Tires |
Front |
|
8.25-15-14PR |
|
Rear |
|
8.25-15-14PR |
|
|
Wheelbase |
mm |
2250 |
|
|
Tread |
Front |
mm |
1470 |
|
Rear |
mm |
1700 |
|
|
Min. ground clearance |
mm |
190 |
|
|
Engine |
Model |
|
Made in China 6102BG |
|
Rated output |
kw/rpm |
73/2200 |
|
|
Rated torque |
N.m/rpm |
290/1650 |
|
|
No. of cylinder |
|
6 |
|
|
Displacement |
L |
5.789 |
|
|
Fuel tank capacity |
L |
140 |
|
