Hydraulic Heavy Equipment Excavator SC200.8 With Closed Cab 108kw Cummins Diesel Engine

China Hydraulic Heavy Equipment Excavator SC200.8 With Closed Cab 108kw Cummins Diesel Engine supplier

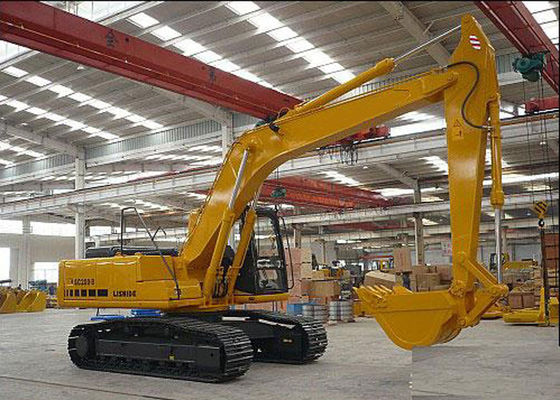

Large Image :  Hydraulic Heavy Equipment Excavator SC200.8 With Closed Cab 108kw Cummins Diesel Engine

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: Ghost/ISO/SGS/CE
Model Number: SC200.8

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 10 working days after received L/C or your deposit
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000 units per month
Detailed Product Description
Product Name: Hydraulic Excavator Operation Weight: 20600KGS
Engine: Cummins Rated Engine Power: 108 KW
Max. Bucket Digging Force: 112 KN Max. Digging Reach: 9700 Mm
Max. Digging Depth: 5980mm Max. Digging Height: 9223 Mm

 Hydraulic Heavy Equipment Excavator SC200.8 With Closed Cab 108kw Cummins Diesel Engine


ItemUnitReference value
Engine (genuine and imported)
Model 6BT5.9-C
Type4-stroke, water cooling, inline, in-head valve, direct injection, turbo charged
Cylinder no. cylinder bore × strokemm6-102×120
Piston displacementL5.9
Rated output powerKw/rpm108/2100
Max. torqueN.M/rpm597/1600
Start motorKw24V,4.5
AlternatorA24V,4.5
Batteryv,Ah12,120×2
Carrying wheel(A)2
Standard working device
Standard boom SC210.7/SC210LC.7
Bucket capacitym3Scope 0.4-0.8
Rock bucket (option)m30.6
Dredging bucket (option)m30.8
Grading bucket (option)m2
Arm (standard device) SC210.7/SC210LC.7
Travel part
No. of supporting wheel on each side(A)7
No. of standard track board on each side 45
Track gaugemm2180
Track grounding lengthmm3260
Hydraulic system / control valve (Kawasaki)
Type KMX15R
Control method Hydraulic pilot type
Travel motor (KYB) Axial piston type (with brake valve and parking brake)×2
Slewing motor (Kawasaki) Axial piston type (with brake valve and parking brake) ×1
Hydraulic system / hydraulic pump (Kawasaki)
Type × no.l/minVariable displacement pump
FlowL/minPiston type:214×2
Set pressure(Mpa)(Kg/cm2)Piston type:34.8(355)
Hydraulic system / hydraulic cylinder (Reciprocating piston type)
Boom cylinder 120×85
Arm cylinder 135×95
Bucket cylinder 115×80
A Overall length (in transportation)(mm)9423
B Overall width(mm)2780
C Overall height (in transportation)(mm)3165
D Body overall height ( cab top)(mm)2940
E Clearance of super structure(mm)1064
F Min clearance(mm)468
G Rear slewing radius(mm)2720
H Track grounding length(mm)3260
J Track length(mm)4070
K Track gauge(mm)2180
L Track width(mm)2780
M Track board width(mm)600
V Min. slewing radius of working device(mm)3040
Z Top height for min. slewing radius of working device (mm)8005



Bucket capacity(m3)0.8
Operation weight(kg)20600
O Max. Digging height(mm)9223
P Max. dumping height(mm)6506
Q Max. digging depth(mm)6620
R Max. vertical digging depth(mm)5980
T Max. digging radius(mm)9875
U Max. ground digging radius(mm)9700
Max. bucket digging force(kN)112(11400)
Slewing speed(rpm)11.7
Travel speed(km/h)L:3.1 H:5.5
Gradeability35
Grounding pressure(kPa)44.9
Standard track board width(mm)600
Max angle of slewing on slope(deg)25

Dimension

A Overall length (in transportation)(mm)9423
B Overall width(mm)2780
C Overall height (in transportation)(mm)3165
D Body overall height ( cab top)(mm)2940
E Clearance of super structure(mm)1064
F Min clearance(mm)468
G Rear slewing radius(mm)2720
H Track grounding length(mm)3260
J Track length(mm)4070
K Track gauge(mm)2180
L Track width(mm)2780
M Track board width(mm)600
V Min. slewing radius of working device(mm)3040
Z Top height for min. slewing radius of working device (mm)8005
