2 Segment Quadrilateral Telescopic Boom Variable Reach Forklift 4 Wheeled Driven

China 2 Segment Quadrilateral Telescopic Boom Variable Reach Forklift 4 Wheeled Driven supplier

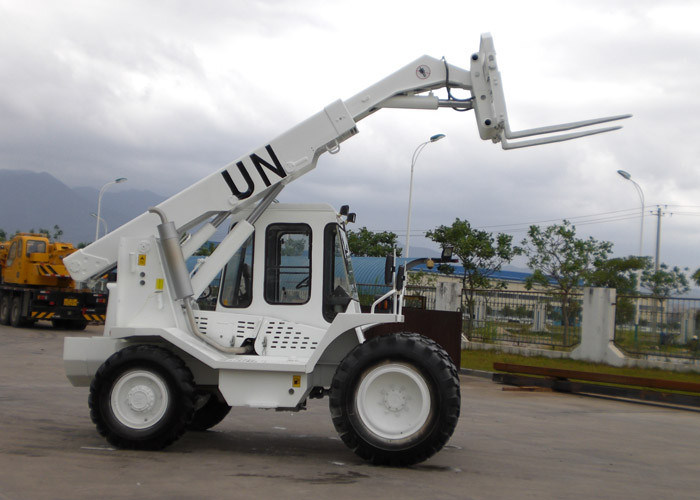

Large Image :  2 Segment Quadrilateral Telescopic Boom Variable Reach Forklift 4 Wheeled Driven

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: ISO / CE
Model Number: SCZ35-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing in container
Delivery Time: 20 working days after received L/C or your deposit
Payment Terms: L/C at sight, T/T or western Union
Supply Ability: 1500 units per month
Detailed Product Description
Power Type: Diesel Max Lifting Capacity: 3500 Kg
Capacity @ Max Reach: 1000 Kg Max Forward Reach: 3620 Mm
Reach @ Max Height: 1000 Mm Max Lifting Height: 6000 Mm
Lift Speed @ Payload: 0.35 M/s Min Turning Diameter: 15500 Mm
Max Travel Speed: 30 Km/h Min Height Of Forks: 350 Mm
Operating Weight: 8000kg

2 Segment Quadrilateral Telescopic Boom Variable Reach Forklift 4 Wheeled Driven





Telescopic Arm Forklift 3.5 Ton Telescopic Wheel Loader SCZ35-4 With Min Turning Diameter 15.5M

Description:
The working device is two-segment,quadrilateral telescopic boom,and fork lateral displacement unit adopted in normal type.

This boom loader is mainly used to handle the unloading and loading of materials which piled on trays to containers as well as pilling,stocking and short distance transporting.It is a kind of multi-purpose using,efficient and convenient machine for loading and unloading, hosting,transporting in mineral yards,planet,construction spots,ports,public works, furthermore optional accessories could be choose by user include bucket, hook, boom.The loading heigh and the cross country performance of our products are much excellent than regular forklift trucks.



Main Features:
The Telescopic wheel loader (SCZ35-4) for almost any task that involves lifting, moving or placing objects or materials. It works with Four-Wheel Drive, hydro mechanical transmission, hydraulic Power Steering, Hydraulic brake, and Rear-Wheel Steering. The handling equipment is Telescopic boom, standard model installs moving fork. Besides smooth joystick controls and a wide range of attachments, we also can offer the right machine meet your specific requirements. Shovel loader, derrick boom and hook for selecting to install.

Specifications:

Item

Unit

Parameter

Max lifting capacity

kg

3500

Capacity @ Max Reach

kg

1000

Max forward reach

mm

3260

Reach @ Max height

mm

1000

Max lifting height

mm

6000

Lift speed @ payload

m/s

0.35

Flex speed

m/s

13

Max Travel Speed

km/h

30

Min Height of Forks

mm

350

Min turning diameter

mm

15500

Gradeability

%

20

Operating Weight

kg

8000

Engine

(CUMMINS)

Model



4BT3.9-C80

Rated power

kw

60

Rated speed

r/min

2000

Peak Torque



330N.m/1500r/min

Displacement

L

3.9

Compression Ratio



17.5:1

Tire

Front



16/70-20

Rear



8.25-20-14
