|Power Type:||Diesel||Max Lifting Capacity:||3000 Kg|
|Load Center:||800kg||Rated Telescopic Distance:||2950 Mm|
|Ground Clearance:||350 Mm||Max Lifting Height:||5680 Mm|
|Lift Speed @ Payload:||0.35 M/s||Min Turning Radius:||15500 Mm|
|Max Travel Speed:||30 Km/h||Min Turning Diameter:||12500mm|

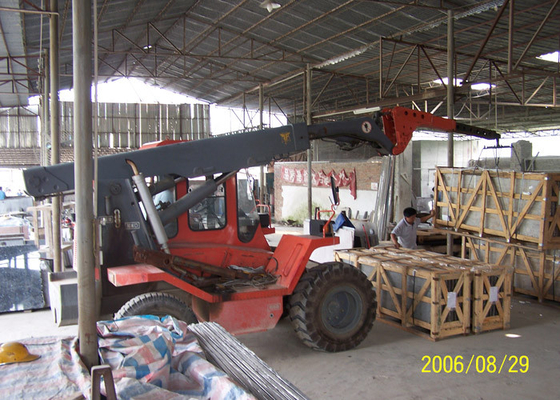

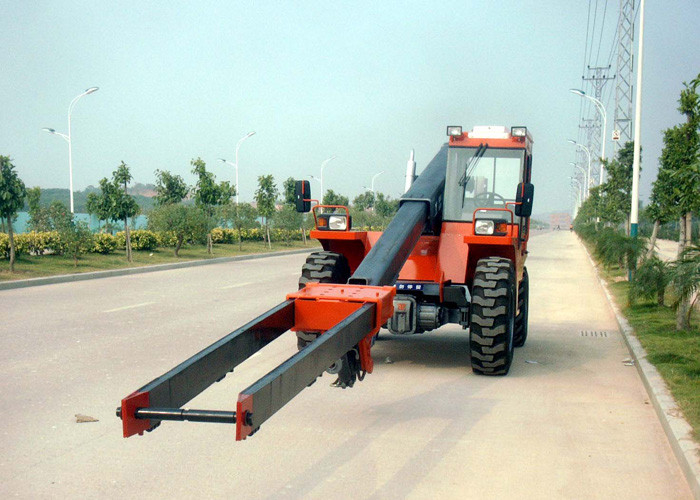

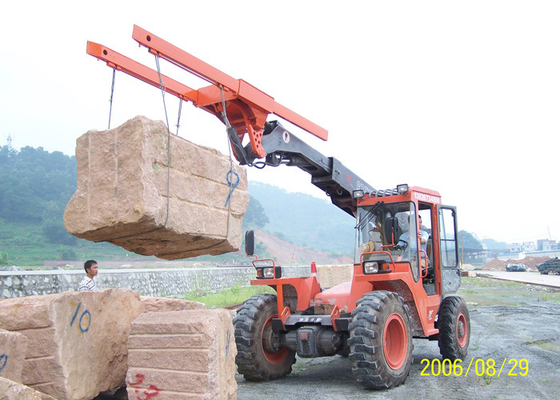

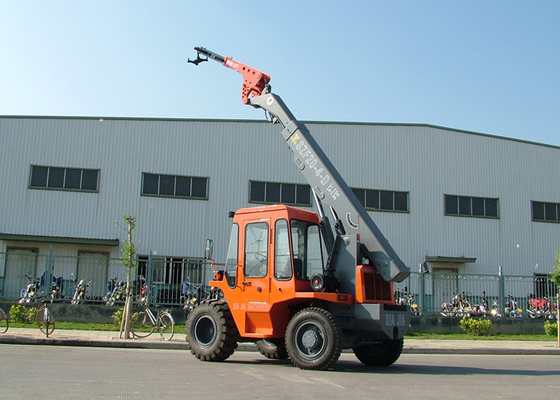

Rigid Suspension Chassis All Terrain Telehandler , Hydraulic Power Steering Boom Lift Crane
Diesel Powered Telescopic Boom Forklift 3Ton Telehandler SCZ30-4D With 8120KG Operating Weight
The Telescopic wheel loader (SZ25-4) for almost any task that involves lifting, moving or placing objects or materials. It works with Four-Wheel Drive, hydro mechanical transmission, hydraulic Power Steering, Hydraulic brake, and Rear-Wheel Steering. The handling equipment is Telescopic boom, standard model installs moving fork. Besides smooth joystick controls and a wide range of attachments, we also can offer the right machine meet your specific requirements. Shovel loader, derrick boom and hook for selecting to install.
SCZ25-4 telescopic boom loader equipped with rigid suspension chassis,hydraulic-mechanical transmission,hydraulic steering and brake system of hydraulic vacuum booster pump,rear wheel steering,air-conditioner ,astern radar,DVD,automobile type meter panel.
The working device is two-segment,quadrilateral telescopic boom,and fork lateral displacement unit adopted in normal type.
This boom loader is mainly used to handle the unloading and loading of materials which piled on trays to containers as well as pilling,stocking and short distance transporting.It is a kind of multi-purpose using,efficient and convenient machine for loading and unloading, hosting,transporting in mineral yards,planet,construction spots,ports,public works, furthermore optional accessories could be choose by user include bucket, hook, boom.The loading heigh and the cross country performance of our products are much excellent than regular forklift trucks.
Rated lifting capacity
Max. lifting weight, out telescopic type
Max. telescopic distance
Rated telescopic distance
Max. driving speed
Max. turning radius
Overall size (LxWxH)
