63.5KW Oil Burner Hot Asphalt Mixing Plant 1000kgs Feeder Hopper Capacity CE / SGS / ISO9001

China 63.5KW Oil Burner Hot Asphalt Mixing Plant 1000kgs Feeder Hopper Capacity CE / SGS / ISO9001 supplier

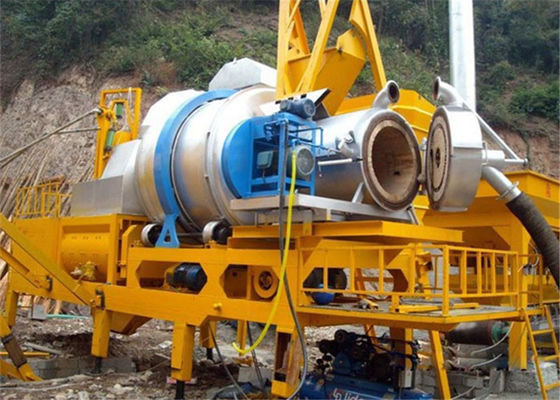

Large Image :  63.5KW Oil Burner Hot Asphalt Mixing Plant 1000kgs Feeder Hopper Capacity CE / SGS / ISO9001

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: CE/SGS/ISO9001
Model Number: QLB-20

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Nude packing in container.
Delivery Time: 25-30working days after received your payment
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 500set per month
Detailed Product Description
Capacity: 20TPH Fuel Consumpution: 5.5 - 7.5kg / T
Feeder Hopper Capacity: 1000kgs Asphalt Output: 1000kgs
Aggregate Size: < = 50mm Aggregate Bins: 2.3M3x4 Each, Accumulative Scale
Product Temperature: 120 ~ 165 ℃,adjustable Total Consumption: 63.5kW (Oil Burner)
Aggregate Hopper: 5m3 Finished Silo: 10tons

63.5KW Oil Burner Hot Asphalt Mixing Plant 1000kgs Feeder Hopper Capacity CE / SGS / ISO9001





20 TPH Mobile Asphalt Batching Plant QLB-20 With Oil Burner / Coal Burner



Specifications:



Capacity

20 tph

Fuel consumpution

5.5-7.5kg/t

Feeder hopper capacity

1000kgs

Asphalt output

1000kgs

Aggregate size

<=50mm

Aggregate Bins

2.3M3x3 each, accumulative scale

Accuracy

Aggregate

≤2000kg±3%



Fly ash

≤180kg±2%



Asphalt

≤180kg±2%

Product temperature

120~165 ℃,adjustable

Total consumption

63.5 kW (Oil burner)



Configuration List:



Item

Description

Unit

Main parts



Chassis (Front,rear axle)

1set



Burner

1unit



Drying drum and drive system

1unit



Mixer drum and drive system

1unit



Cyclone dust filter

1unit



Blower

1unit



Vent

1unit



Bitumen Scale

1set

Control System



PLC

1set



Control panel

1set



Touch screen

1unit





Description:



1) Rated productivity: 20tph

2) Suitable material: bitumen, aggregate

3) Feeder hopper capacity: 1000kg

4) Main power: oil burner 63.5kW, coal burner 86.5kW

5) Product temperature: 120~165°C, adjustable

6) Burner: oil, coal and oil

7) Control system: PLC, auto-control and manually, electronic cabin and

   control panel,



Brief to the  QLB series mobile asphalt plant:



1 , Adopts intermittent drying cylinder, with double compulsory shaft mixer,

mainframe can be trailed to walk,

 2 , Occupied less area while short installation period, easy for operation and

maintenance, stability, automation, high standardization,



3 , Finished goods are high quality, excellence technology, suitable for

high-grade road asphalt paving and maintenance.
