4 Stroke Diesel engine 4WD Skid Steer Loader Rental 0.4 - 0.5 m3 Bucket Capacity

China 4 Stroke Diesel engine  4WD Skid Steer Loader Rental 0.4 - 0.5 m3 Bucket Capacity supplier

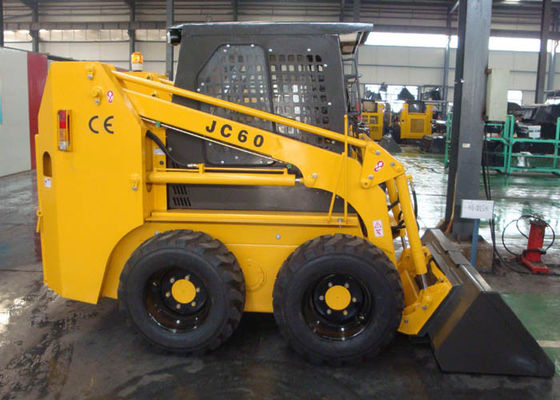

Large Image :  4 Stroke Diesel engine 4WD Skid Steer Loader Rental 0.4 - 0.5 m3 Bucket Capacity

Product Details:

Place of Origin: CHINA
Brand Name: KUDAT
Certification: CE/Ghost/Emark/ISO
Model Number: JC60

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Naked Packing in Container
Delivery Time: 10 days after receipt of deposit or L/C
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 2000 units per month
Detailed Product Description
Rated Power: 60 HP Rated Operating Capacity: 850 Kg
Bucket Capacity: 0.4 M3 - 0.5 M3 Weight: 3200 Kg
Max.Travel Speed: 12 M/h Grade Ability: 20 °
Tipping Load: 1700 Kg Lifting Force: 1950 Kg

4 Stroke Diesel engine  4WD Skid Steer Loader Rental 0.4 - 0.5 m3 Bucket Capacity



60HP Power 4WD Skid Steer Loader JC60 With Bobcat Attachments Operating Weight 3200kg



Main Features of skid steer loader:

1) Good technical parameters with competitive price
2) maneuver in tight spaces, turn within its own length
3) a broad product line, innovative designs, and unsurpassed range of job-matched attachments.
4) Excellent reach & lift height for truck loading (vertical path).
5) more than 20 series attachments for option: pallet fork, swing blade, utility fork grapple, asphalt cutter, backhoe, hydraulic hammer, 4 in 1 bucket, auger, cultivator, and tooth bucket etc
6) attachment can be used with bobcat type skid loader
7) world famous hydraulic systems from America, Japan and Italy
8) famous brand engine with EPA or EC stage II or III from abroad and domestic
9) CE and ISO 9001 certificated
10) versatility, maneuverability and reliability





OPTIONAL:
1) PERKINS ENGINE, HYUNDAI ENGINE, DEUTZ ENGINE, LOVOLE ENGINE AND DOMESTIC ENGINE AND MORE
2) WITH OR WITHOUT HYDRAULIC SERVO(JOYSTICK SYSTEM)
3) ENCLOSED CAB WITH OR WITHOUT AIR CONDITIONER OR HEATER
4) ALL KINDS OF TIRES ( SOLIC, NORMAL, CACUUM) AND DIFFERENT TYPE FOR CHOICE
5) VARIOUS OF ATTACHMENTS



60hp skid steer wheel loader
Specifications
Rated operating capacity(kg)  850
Tipping load(kg)  1700
Bucket capacity(m3)     0.4-0.5
Operationg weight(kg)  3200
Max. travel speed(km/h)  12
Hydraulic pump flow(L/min)  75
Fuel tank capacity(L)  80
Tires   12-16-15
Overall dimensions(mm)  3840×1820×2080
Dimensions
Height at maximum extension(mm)  3690
Height to bucket hinge pin(mm)  2920
Width with bucket(mm)  1820
Track width(mm)  1500
Wheelbase(mm)  991
Ground clearance(mm)  205
Dump angle  40°
Dumping height(mm)  2330
Maximum reach(mm)  710
Diesel Engine XINCHAI 498BPG
Rated Engine power  60hp/2650rpm
Type  4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement(L)  2.54
Standard
Open-type operator cab
Hand control system(Mechanical type)
Standard bucket
Auxiliary hydraulic couplers

20' container load 2 sets
40' container load 4 sets



4 Stroke Diesel engine  4WD Skid Steer Loader Rental 0.4 - 0.5 m3 Bucket Capacity

4 Stroke Diesel engine  4WD Skid Steer Loader Rental 0.4 - 0.5 m3 Bucket Capacity
