Construction Project Big Compact Tractor Loader Backhoe 21 Mpa Max Systemic Pressure

China Construction Project Big Compact Tractor Loader Backhoe 21 Mpa Max Systemic Pressure supplier
Construction Project Big Compact Tractor Loader Backhoe 21 Mpa Max Systemic Pressure supplier Construction Project Big Compact Tractor Loader Backhoe 21 Mpa Max Systemic Pressure supplier Construction Project Big Compact Tractor Loader Backhoe 21 Mpa Max Systemic Pressure supplier Construction Project Big Compact Tractor Loader Backhoe 21 Mpa Max Systemic Pressure supplier

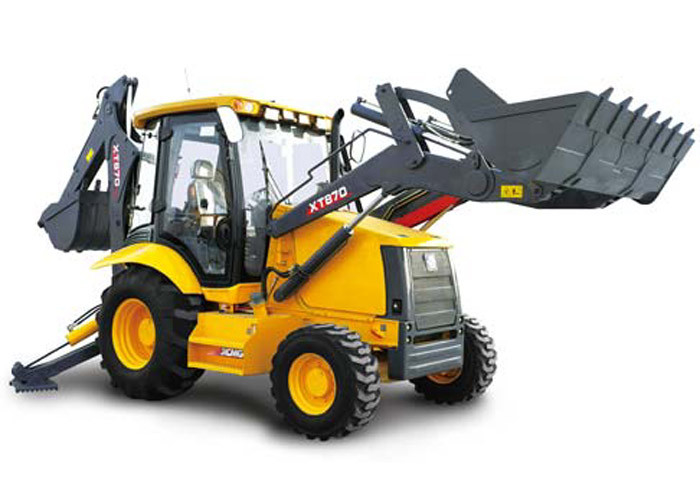

Large Image :  Construction Project Big Compact Tractor Loader Backhoe 21 Mpa Max Systemic Pressure

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: CE/Ghost/ISO
Model Number: XT870

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: naked packing in container
Delivery Time: 15 working days after deposit
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Engine Power: 70 KW / 95 HP Break-out Force: 42 Kn
Operating Weight: 7300 Kg Max. Digging Radium: 5471 Mm
Rated Load Bucket Capacity: 1.0 M3 Max. Digging Depth: 4495 Mm
Rated Digging Capacity: 0.3 M3
High Light:

compact tractor loader backhoe

,

compact backhoe loader

Construction Project Big Compact Tractor Loader Backhoe 21 Mpa Max Systemic Pressure



Big Backhoe Loader XT870 With 70KW Power and 1m3 loading capacity  Working in Construction Project

Premeter of XT870 Backhoe Loader:



XT870 Backhoe loader is a kind of Multi-functional engineering machinery incorporating excavating and loading into an organic whole. It adopts the advanced static hydraulic transmission and popular integral structure overseas with the following advantages the complete machine is rational distributed and compact; It is attractive in appearance; It is comfortable and convenient to handle, the turning radius is small and the cost performance is high. It is widely used in municipal administration; the construction of projects such as used the building, the oil field, water conservancy, the forest farm, the military project, and so on. It also can be used in excavating, carrying and leveling and can carry on the flexible and swift homework to scrap heap and waste residue of large and medium-sized enterprise. It is the ideal model of realizing a machine with multi-

functions.

  • It has the high power and good performance ability. The key parts such as the engine, the case, the bridge, the hydraulic system, etc. adopt the import components, which have improved the dependability of the complete machine.
  • The stability of performance and traveling has been improved by means of highest speed, the small turning radius and the adoption of integral frame. In addition, single pump supports oil and hydraulic steering system make the systematic pressure reach 21Mpa, which has improved the performance ability of the complete machine. The highest speed reaches 4.02kM/h, which has improved the production efficiency of the complete machine
  • It is easy and simple to handle. You can change the shelf in moving. The loader is operated by single pole and the digger by a pair of poles. The complete machine puts excavating as the focal point of performance, so it has obviously improved the excavating stability in structural design.
  • The whole day-lighting dosed driver’s cabin is furnished with the system of the air conditioner, ROPS system. It is safe and comfortable, and the visual field is broad. It adopts the sound insulation, the heat insulation and shock attenuation, uses the whole day-lighting driver’s cabin which puts the system of the fluorine-free air conditioner, which improved the comfortableness of the operating environment, guaranteed the clear visibility. It adopts the wholly-tumbling.



Specification of XT870 Backhoe Loader

Description

Specifications

Unit

Working weight

7300

kg

Overall dimension (LxWxH)

7173x2366x3437

mm

Max. travel speed

40.2/48.6

Km/h

Wheel base

2152

mm

Turning radius

4428

mm

Tires (F/R)

15.5-25/8.25-15

Working oil pump

Oil pump model

CBG3063 Gear pump

Max. rotary speed

2200

r/min

Rated pressure

20

Mpa

Engine

Rated power

70

kW

Rated rotary speed

2200

r/min

Model

Weichai Deutz engine

Type

4cylinders, turbo-charger, water cooled, 4-strokes

Displacement

4.5

L

Fuel consumption

22.5

g/kw.h

Loading installment

Bucket capacity

1.0

M3

Dumping clearance

2825

Mm

Break out force

42

kN

Excavation installment

Digger capacity

0.3

M3

Max. digging depth

4495

mm

Max. digging radium

5471

mm



Construction Project Big Compact Tractor Loader Backhoe 21 Mpa Max Systemic Pressure

Construction Project Big Compact Tractor Loader Backhoe 21 Mpa Max Systemic Pressure

Construction Project Big Compact Tractor Loader Backhoe 21 Mpa Max Systemic Pressure
