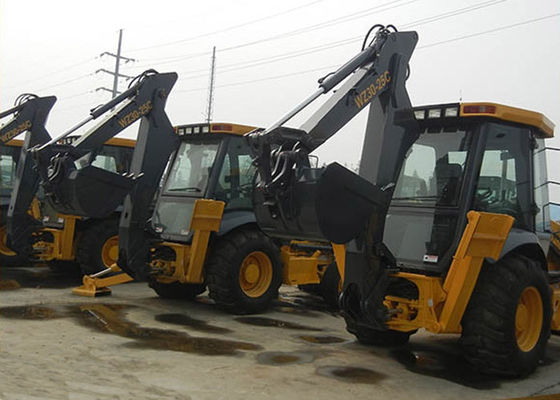

Wheeled Hydraulic Backhoe for Compact Tractor 7400 Kg Operating Weight

China Wheeled Hydraulic Backhoe for Compact Tractor 7400 Kg Operating Weight supplier

Large Image :  Wheeled Hydraulic Backhoe for Compact Tractor 7400 Kg Operating Weight

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: CE/Ghost/ISO
Model Number: WZ30-25C

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: naked packing in container
Delivery Time: 15 working days after deposit
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 1000 units per month
Detailed Product Description
Engine Power: 74 KW / 99HP Rated Load: 1700 Kg
Operating Weight: 7400 Kg Rated Load Bucket Capacity: 1.0 M3
Max. Dump Height: 3737 Mm Max. Digging Depth: 4338 Mm
Max. Digging Force: >50±10%kN

Wheeled Hydraulic Backhoe for Compact Tractor 7400 Kg Operating Weight



Hydraulic Backhoe loader WZ30-25C 4WD , 0.8-1.2m3 bucket capacity  , With Deutz Diesel Engine

Feature Of Backhoe Loader WZ30-25C

1. Equipped with WD DETUZ engine
2. 4 forward & 4 reverse synchromesh mechanical shift transmission
3. Combined seal cylinder obtains high seal performance and more reliability
4. Improved loader and backhoe performance
5. CARRARO wet type rear axle with multi-disc brake& CARRARO front axle
6. New-type cab with more space, increases comfort and visibility
7. With 2 wheel driving or 4 wheel driving for option
Applications of Backhoe Loader WZ30-25C:
The backhoe loaders' versatility and compact size makes them one of the most popular construction machinery/construction equipment. These backhoe loaders are widely used for larger projects such as building a house, fixing city roads, mining, etc.
Working principle of Backhoe Loader WZ30-25C:
Because the design of backhoe loaders is top-heavy and the swinging weight of the backhoe could cause the vehicle to tip, backhoe loaders use hydraulic outriggers when digging and lower the loader bucket for additional stability.

Parameter Of Backhoe Loader WZ30-25C



Overall Dimension
1 Length(with bucket on ground) 7077(mm)
2 Width 2350(mm)
3 Load Bucket width 2328(mm)
4 Height(To the top of the cab) 2735 (mm)
5 Height(To the top of the digging pole) 3424 (mm)
9 Min. ground clearance 355(mm) for 2WD 275(mm) for 4WD
Main Loading Technical Specification
1 Rated load 1700(Kg)
2 Operating weight 7400KG
3 Max lifting capability >2500KG
4 Rated load bucket capacity 1.0(m3)
5 Max. load breakout force >40kN
6 Max. dump clearance 2611(mm)
7 Max. Dump reach 726(mm)
8 Dump angle at any position ≥43.50
13 Traveling speed(Km/h),4 forward and 4 reverse
  (1) I gear forward 5.8
(2)II gear forward 10.5
(3) III gear forward 20.1
(4) IV gear forward 40.2
(1) I gear reverse 7
  (2)II gear reverse 12.6
(3)III gear reverse 24.3
(4) IV gear reverse 48.6
Main Digging Technical Specification
1 Rated digging bucket capacity 0.3(m3)
2 Max. digging depth 4338(mm)
3 Max. digging force >50+10%kN
4 Max. digging radius 5481(mm)
5 Max. dumping height 3737(mm)
Diesel engine
1 Model WDT226B
2 Type Direct injection. Turbocharged. Water cooling
3 Rated output 70 (kW)
4 Total exhaust of cylinder 3.92(L)
Transmission System
1. Torque Converter
1 Model CARRARO
2 Cooling type Pressure oil circulating
2. Transmission
1 Model CARRARO
2 Type Synchromesh mechanical shift
3 Gear shift posit 4 Forward and 4 reverse gears



Wheeled Hydraulic Backhoe for Compact Tractor 7400 Kg Operating Weight

Wheeled Hydraulic Backhoe for Compact Tractor 7400 Kg Operating Weight
