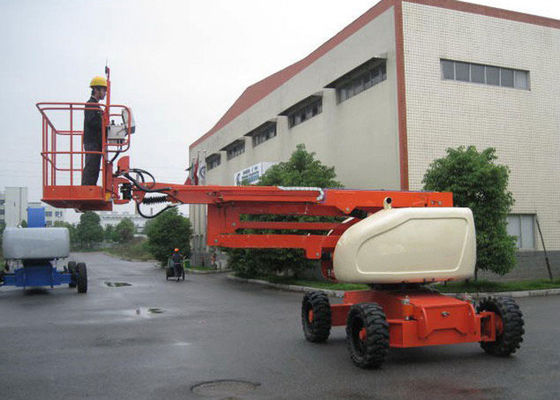

12M Articulated Boom Cherry Picker Truck for 7.6M Max Horizontal Reach Aerial Operation

China 12M Articulated Boom Cherry Picker Truck for 7.6M Max Horizontal Reach Aerial Operation supplier

Large Image :  12M Articulated Boom Cherry Picker Truck for 7.6M Max Horizontal Reach Aerial Operation

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: CE
Model Number: GTZZ10D

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 30 working days after received your deposit
Payment Terms: L/C at sight, T/T . Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Platform Height Maximum: 12.05m Horizontal Reach Maximum: 7.6m
Platform Size: 1.53*0.76m Lift Capacity (restricted): 230kg
Platform Rotation: 180° Turntable Swing: 360° Continuous
Drive Speed -stowed: 4km/h Power Source: 6×8/210Ah TROJAN Battery

12M Articulated Boom Cherry Picker Truck for 7.6M Max Horizontal Reach Aerial Operation





12M cherry picker truck GTZZ12D Articulated Boom Lift With 7.6M Horizontal Reach Maximum



Specifications:

12M Articulated Boom Cherry Picker Truck for 7.6M Max Horizontal Reach Aerial Operation12M Articulated Boom Cherry Picker Truck for 7.6M Max Horizontal Reach Aerial Operation12M Articulated Boom Cherry Picker Truck for 7.6M Max Horizontal Reach Aerial Operation

NO

Item

GTZZ-12D

GTZZ-14D

GTZZ-16D

GTZZ-18D

 1

Working height maximum

13.75m

15.46m

17.505m

19.8m

2

Platform height maximum

12.05m

13.76m

15.805m

18m

3

A

Platform  Length

0.76m

B

Platform  Width

1.53m

4

C

Height-stowed

2m

5

D

Length-stowed

5.5m

6.24m

7.9m

8.1m

6

E

Width

1.75m

1.75m

2m

2.38m

7

F

Wheel Base

2m

8

G

Ground clearance center

200mm

7

Horizontal reach maximum

7.6m

7.6m

7.6m

7.6m

9

Lift capacity

230kg

10

Turning radius (outside)

4.5 m

11

Turntable Swing

360°continuous

12

Speed of Turntable Swing

0~1/3rpm

13

Leveling mode

Automatic

14

Platform rotation

180°

15

Tire

250-15 solid tire

16

Hydraulic oil tank capacity

70L

17

Weight

6500kg

6780kg

7110kg

7650kg

18

Travel speed





Stowed

5km/h

19

Raised or extended

0.8km/h

20

Grade ability

30%

25%

21

Drive and turn mode

2WD×2×2

22

Battery

48/420Ah TROJAN

23

Travel electric motor

2×6.5kW/SME



Description:

Our boom lift can be divided into two types, telescopic type and articulating type. Our telescopic boom lift is powered by an internal combustion engine, 4*4 driving mode and 4*2 driving mode are available for you to choose. This type of aerial working platform with a wide operation range, it could be used to handle aerial operation for a variety of rough terrain. Currently it is mainly applied for building construction, bridge building, ship building, outdoor advertisement facility installation, as well as construction of airport, mine, port and more.



Features:

1. It is a self-propelled articulated boom lift.
 2. It can realize the lifting upwards, onwards, etc.
 3. The two-wheel and four-wheel driving mode, diesel, electric motor, double power sources, etc. are optional.
 4. The working height ranges from 12m to 26m.
 5. The horizontal reach of the self-propelled articulated boom lift ranges from 7m to 13.3m.



12M Articulated Boom Cherry Picker Truck for 7.6M Max Horizontal Reach Aerial Operation
