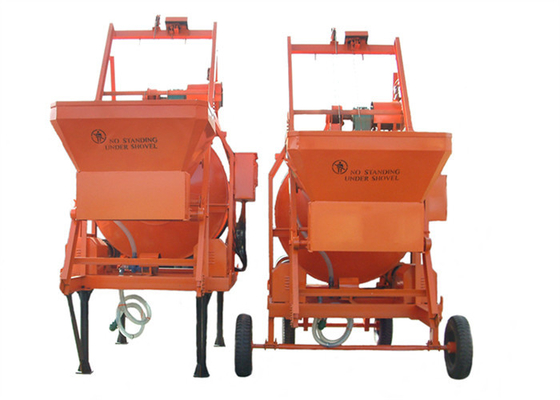

Mobile Reverses Discharging Portable Electric Cement Mixer 750L Volume Low Noise

China Mobile Reverses Discharging Portable Electric Cement Mixer 750L Volume Low Noise supplier
Mobile Reverses Discharging Portable Electric Cement Mixer 750L Volume Low Noise supplier Mobile Reverses Discharging Portable Electric Cement Mixer 750L Volume Low Noise supplier

Large Image :  Mobile Reverses Discharging Portable Electric Cement Mixer 750L Volume Low Noise

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: CE/SGS/ISO9001
Model Number: JZM750

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: Negotiation
Packaging Details: Nude packing in container.
Delivery Time: 25-30 working days after received your payment
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Capacity Of Discharge: 750L Capacity Of Loading: 1200L
Power Source: Electric Motor Powered: 7.5KW
Power Supply: 380V / 50HZ Drum Rotating Speed: 13r.p.m
Overall Size: 4415×2000×2800mm Weight: 3956kg
Tyre Size: 7.00*16 Max. Travelling Speed: 20 KM / H
High Light:

concrete mixer equipment

,

cement concrete mixture machine

Mobile Reverses Discharging Portable Electric Cement Mixer 750L Volume Low Noise

750L Electric Mobile Reverses Discharging Cement Mixer With 25 M3 / H Productivity And 7.5 KW Electric Motor
750L Electric Mobile Reverses Discharging Cement Mixer For Concrete Mixing Works

Specifications:



ITEM PARAMETERS

UNIT

JZM750

DISCHARGING VOLUME

L

750

CHARGING VOLUME

L

1200

PRODUCTIVITY

M³/h

25

DRUM ROTATION SPEED

r/MIN

13

MAX. AGGREGATE DIAMETERS

mm

80

MIXER ELECTRIC MOTOR



Y132M-4-4B5

POWER

kW

2×7.5

VOLTAGE

v

380

HOISTER ELECTRIC MOTOR



YEZ41-4

POWER

kW

7.5

VOLTAGE

V

380

PUMP ELECTRIC MOTOR



50DW B18-8A

FLOW

L/S

5

POWER

kW

0.75

VOLTAGE

V

380

DIMENSION (LENGTH× WIDTH× HEIGHT)

WORKING STATEMENT

(mm)

6150×2000×4800

TRANSPORTATION STATEMENT

(mm)

4415×2000×2800

Max. TRAVELLING SPEED

Km/h

20

WEIGHT

kg

3956

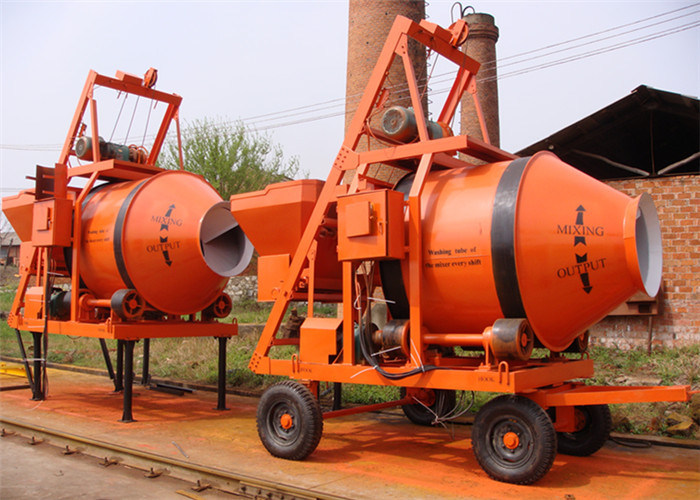

JZM750 concrete mixer

1 , It can be used as facility concrete plant, which is applied with PLD1200 batching
   machine. It has reasonable structure, high production efficiency drive reposefully
   and low noise.

2,Floor - type bipyramid reversal discharging mixer machine, used to mix the plastic
   and half-dry hard concrete.Discharge by the counter rotation of the cylinder.

3 , It has reasonable structure, high production efficiency, good mixing quality and
     beautiful sculpt. It is an advanced model.JZM750 concrete mixer.
    The no- load test run.
1 . Inching mixing machine,check drum rotate direction.
2 . Make the drum positive and negative rotation. two minutes one cycle. running it
    about 15minutes. check the motor,reduction and other parts if all right. it should
    be no noise and impact.
3 . Operate the feeding hopper and let it up and down.check if the limit stopper is          reliable.

JZM750 concrete mixer -----  The water pump debugging.

1.inching water motor,check the rotate direction.
2.screw up the pump and inject the water diversion into plug screw untill the it has
  normal water suction.

Mobile Reverses Discharging Portable Electric Cement Mixer 750L Volume Low Noise
