Electric Battery Operated Industrial Forklift Truck With 3000MM Lifting Height 3950KG Operating Weight

China Electric Battery Operated Industrial Forklift Truck With 3000MM Lifting Height 3950KG Operating Weight supplier

Large Image :  Electric Battery Operated Industrial Forklift Truck With 3000MM Lifting Height 3950KG Operating Weight

Product Details:

Place of Origin: CHINA
Brand Name: KUDAT
Certification: ISO / CE
Model Number: CPD20

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing in container
Delivery Time: 15 working days after received L/C or your deposit
Payment Terms: L/C at sight, T/T or western Union
Supply Ability: 1500 units per month
Detailed Product Description
Power Type: Diesel Rated Capacity: 2000 Kg
Load Center: 500 Mm Mast Lifting Height: 3000 Mm
Max. Grade Ability: 20% Free Lift Height: 60 Mm
Fork Size(L*W*T): 920*100*40 Mm Min Turning Radius: 2200 Mm
Max Driving Speeds: 12.5 / 14 Km/h Total Weight: 3950 Kg

Electric Industrial Battery Operated Forklift With 3000MM Lifting Height 3950KG Operating Weight





2Ton Battery Forklift Electric Industrial Forklift Truck CPD20 With 3000MM Lifting Height And 3950KG Operating Weight



Main Features:

  1. Reliable AC Traction motor and AC Pump motor which are brushless and maintenance free.
  2. Reliable AC Traction controller and AC Pump controller self-protecting and maintenance free.
  3.  Intertactive communication multifunctional LED meter with friendly interface, display mass  information, password handing and maintenance free.
  4. Standard CAN BUS interface for simple and reliable communication.
  5. Travel speed and lifting speed closed loop control.
  6. Powerful security, self-braking on ramp.
  7. New technology of dynamic signal load sensing in hydraulic system.
  8. Travel speed normal/cutback choice function.
  9. Electromagnetic compatibility reaches international standards.

Battery forklift advantages:

  • we adopt USA curtis controller
  • Standard chinese first class zibo battery and optional German Hoppecke battery.



Specifications:



Model

CPD20

Load capacity kg

2000

Load center mm

500

Max lifting height mm

3000

Tilting angles (forward-backward)

6°/12°

Lifting speeds(with load/without load)mm

285

Free lift mm

60

Max Driving speeds(with load/without load )mm

12.5/14

Min turning radius mm

2200

Slope-climbing gradient

15%

Formal dimension

Length mm

3350

Width mm

1160

Height mm

2130

Mast height fork lowered

2130

Overhead height fork raised  mm

4040

Fork size L*W*T  mm

920*100*40

Fork overhang mm

451

Wheel base mm

1550

Rear overhang mm

395

Under –clearance mm

110

Tread front mm

900

Tread rear  mm

920

Battery voltage v

48

Battery capacity Ah

600

Battery Model

D-600

Tire front

7.00-12

Tire rear

18x7-8

Total weight kg

3950

Traction Motor

XQ-8

Lifting motor

XQD-10-3C

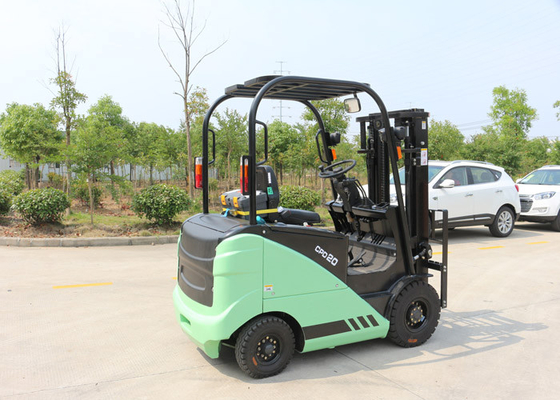

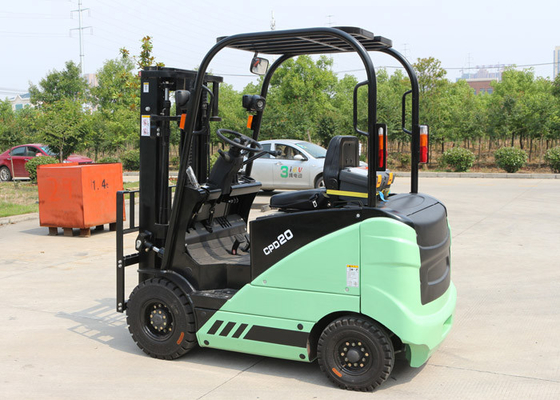

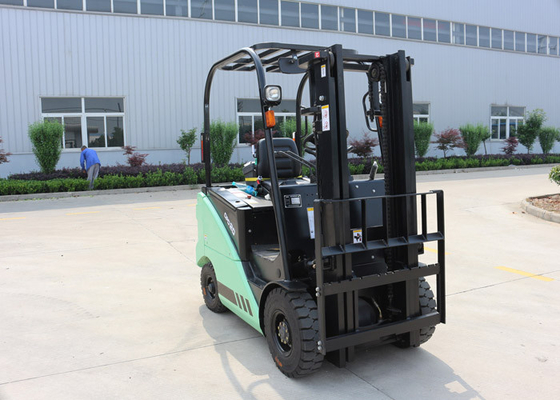

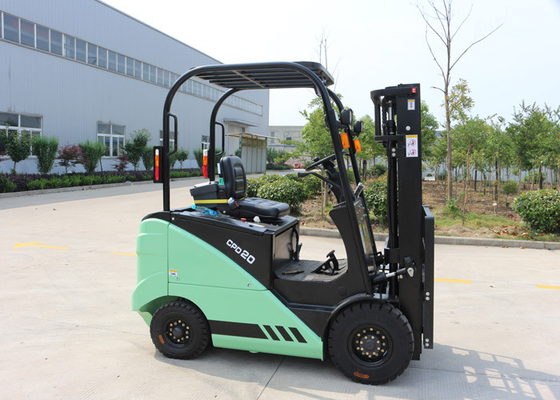

Electric Battery Operated Industrial Forklift Truck With 3000MM Lifting Height 3950KG Operating Weight

Electric Battery Operated Industrial Forklift Truck With 3000MM Lifting Height 3950KG Operating Weight
