Mechanical Transfer Engineering Construction Bulldozer , 2 Lever Operation Dozer for Rent

China Mechanical Transfer Engineering Construction Bulldozer , 2 Lever Operation Dozer for Rent supplier
Mechanical Transfer Engineering Construction Bulldozer , 2 Lever Operation Dozer for Rent supplier Mechanical Transfer Engineering Construction Bulldozer , 2 Lever Operation Dozer for Rent supplier Mechanical Transfer Engineering Construction Bulldozer , 2 Lever Operation Dozer for Rent supplier

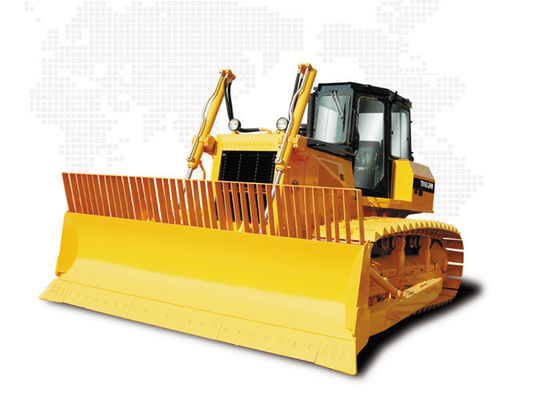

Large Image :  Mechanical Transfer Engineering Construction Bulldozer , 2 Lever Operation Dozer for Rent

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: Ghost/ISO
Model Number: TS165-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 30 working days after received L/C or your deposit
Payment Terms: L/C at sight, T/T or western Union
Supply Ability: 500 units per month
Contact Now
Detailed Product Description
Product Name: Crawler Bulldozer Ground Clearance: 352.5mm
Engine Flywheel Power: 165HP Max. Torque: 830 N.m
Operating Weight(not Including Ripper): 17800KGS Max.digging Depth: 400 Mm
Ground Pressure: 28.3 Kpa Track Gauge: 2300 Mm
High Light:

heavy equipment bulldozer

,

dozer construction equipment

Mechanical Transfer Engineering Construction Bulldozer , 2 Lever Operation Dozer for Rent



165HP Power Crawler Bulldozer TS165-2 for Engineering Construction , 17800 KG Operating Weight

Main Features:



Semi-rigid suspended, mechanical transfer, hydraulic controlled track-type bulldozer. Oil booster control clutch, normally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds. Single lever pilot hydraulic controls implement. Superior cabin is designed with streamline outlook and electric monitor. Been Popular among customers by its many merits such as productive efficiency,

easy operated, low maintenance cost. T165-2 will be the ideal choice for transportation, desert working, oil field, electric power, mine project, etc. It is the updated product based on T165-1.



Technical Specifications:

Model

Unit

TS165-2

Dozer

/

Tilt

Operation weight

Kg

17800

Ground pressure

KPa

28.3

Track gauge

mm

2300

Gradient

°

30/25

Min. ground clearance

mm

352.5

Dozing capacity

4.5

Blade width

mm

4222

Max. digging depth

mm

400

Overall dimensions

mm

5585×4222×3190



Engine:

Type

/

WD10G178E25

Rated revolution

rpm

1850

Flywheel power

KW/HP

121/165

Max. torque

N•m/rpm

830/1100

Rated fuel consumption

g/KW•h

≤218



Gear

Gear

Unit

1st

2nd

3rd

4th

5th

Forward

Km/h

2.702

3.558

6.087

8.076

11.261

Backward

Km/h

3.778

4.974

8.511

11.28





Implement hydraulic system

Max. system pressure

MPa

12

Pump type



Two groups Gears pump

System output

L/min

190



Driving system

Main clutch

Normally opened, wet type, hydraulic booster control.

Transmission

Normally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds.

Steering clutch

Multiple-disc oil power metallurgy disc compressed by spring. Hydraulic operated.

Braking clutch

Brake is oil two direction floating band brake operated by mechanical foot pedal.

Final drive

The final drive is double reduction with spur gear and   segment sprocket, which are sealed by duo-cone seal.



Mechanical Transfer Engineering Construction Bulldozer , 2 Lever Operation Dozer for Rent

Mechanical Transfer Engineering Construction Bulldozer , 2 Lever Operation Dozer for Rent
