45.3KW Diesel Engine Heavy Equipment Excavator , Hydraulic Attachments Excavators

China 45.3KW Diesel Engine Heavy Equipment Excavator , Hydraulic Attachments Excavators supplier

Large Image :  45.3KW Diesel Engine Heavy Equipment Excavator , Hydraulic Attachments Excavators

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: Ghost/ISO/SGS/CE
Model Number: KD60

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 10 working days after received L/C or your deposit
Payment Terms: Western Union, L/C, T/T
Supply Ability: 2000 units per month
Detailed Product Description
Product Name: Hydraulic Excavator Operation Weight: 6000KGS
Engine: Yuchai / Cummins Rated Engine Power: 45.3 KW
Maximum Torque: 247.3 NM Max. Digging Reach: 6255 Mm
Max. Digging Depth: 3720 Mm Max. Digging Height: 5790 Mm

  45.3KW Diesel Engine Heavy Equipment Excavator , Hydraulic Attachments Excavators

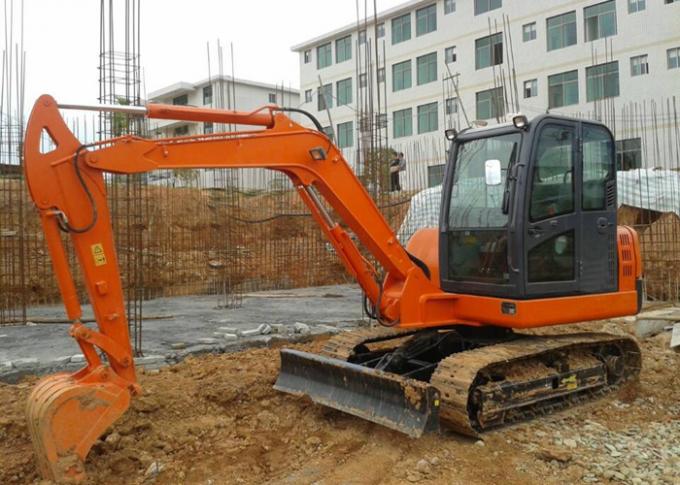

Mini Hydraulic Excavator KD60 With Closed Cab ,  45.3KW Diesel Engine , 6000 KG Operation Weight

Model YC4F60G / Cummins Engine
Cylinders 4
Bore/Stroke 98×100mm
Displacement 3.319L
Fuel injection Direct
Fuel injection pump Mechanical
Fuel  Diesel
Fuel filter Full flow
Cooling Water-cooling
Horswpower(net) 45.3kw @2200rpm
Maximum torque(net) 227.2~247.3N·m @1400rpm
BOOM/ARM
Boom
Swing 80° left / 50°  right
Length 3100mm
Boom weight 230kg
Arm
Length 1500mm
Arm weight 80kg
UNDERCARRIAGE
Number of rollers
Top,each track 1
Bottom,each track 5
Gradability 58%(30°)
HYDRAULICS
Pumps(3) 2×Variable displacement piston pump+gear pump
Capacity- Maximum 2×55L/min+36.5L/min
System relief pressure-
Standard 21MPa+18MPa
Pilot control hydraulic system-
Pumps(1) Gear pump
Maximum capacity 9.9L/min
Relief pressure 3.5MPa
Control valves-
8 function multiple control valve
Pump #1 for right travel and boom function and bucket function
Pump #2 for left travel and arm function
Pump #3 for house swing and dozer function and boom swing
Pump #4 for pilot valve
Swing-
Motor(1) Fixed displacement axial piston design
Speed 0-11rpm
Brake Spring applied,hydraulically released with dual cushion relief
Tail swing radius 1700mm
Travel-
Motor(2) Two-speed axial piston design
Final drive Planetary gear reduction
Travel speeds- Forward/Reverse
Low 2.2km/h
High 4km/h
HYDRAULIC CYLINDERS
Boom cylinder(1)
Bore diameter 110mm
Rod diameter 55mm
Stroke 720mm
Arm cylinder(1)
Bore diameter 85mm
Rod diameter 55mm
Stroke 600mm
Bucket cylinder(1)
Bore diameter 80mm
Rod diameter 45mm
Stroke 840mm
ELECTRICAL
Voltage 12 volts
Alternator 40 amp
Batteries(1) 12V Heavy-duty
SERVICE CAPACITIES
Hydraulic tank
Refill capacity 92L
Total system 140L
Engine
w/filter change 10L
Fuel 75L
Radiator 10L
OPERATING WEIGHT
With 75kg operator 6000kg
Ground pressure 30KPa

A.  Overall height 2645mm
B.  Overall length 6160mm
C.  Track overall width 2000mm
D.  Track shoe width 450mm
E.  Upper structure ground clearance 740mm
F.  Minimum ground clearance 360mm
G.  Center to center(idler to sprocket) 2100mm
H.  Track overall length   2715mm
I.  length of chassis 3150mm
J.  Backfill blade height 360mm
M.  Tail swing radius 1700mm
Working weight 6000kg
Ground pressure 30KPa

PERFORMANCE SPECS
A.  Maximum dig radius 6255mm
B.  Dig radius at groundline 6105mm
C.  Maximum dig depth 3720mm
D.  Dump height 3950mm
E.  Overall reach height 5790mm
F.  Bucket rotation 170°
G.  Vertical straight wall dig depth 3215mm
H.  Lift above groud 385mm
J.  Drop below groud 450mm
K.  min. swing radiu 2610mm
Arm digging force 37KN
Bucket digging force 27KN
BUCKET
Width Capacity Weight
668mm 0.18  m3 150kg



45.3KW Diesel Engine Heavy Equipment Excavator , Hydraulic Attachments Excavators

45.3KW Diesel Engine Heavy Equipment Excavator , Hydraulic Attachments Excavators
