Water Cooling 4 Ton Excavator with Mechanical Fuel Injection Pump Full Flow Fuel filter

China Water Cooling 4 Ton Excavator with Mechanical Fuel Injection Pump Full Flow Fuel filter supplier

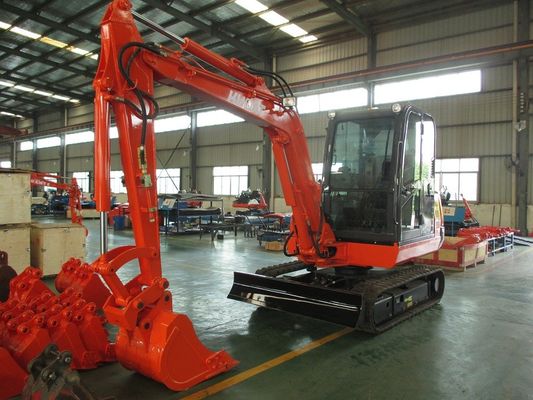

Large Image :  Water Cooling 4 Ton Excavator with Mechanical Fuel Injection Pump Full Flow Fuel filter

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: Ghost/ISO/SGS/CE
Model Number: KD45

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 10 working days after received L/C or your deposit
Payment Terms: Western Union, L/C, T/T
Supply Ability: 2000 units per month
Detailed Product Description
Product Name: Mini Excavator Operation Weight: 4000KGS
Engine: XINCHAI / YANMER Rated Engine Power: 30 KW
Maximum Torque: 165 NM Max. Digging Reach: 5720 Mm
Max. Digging Depth: 3650 Mm Max. Digging Height: 5080 Mm

 Water Cooling 4 Ton Excavator with Mechanical Fuel Injection Pump Full Flow Fuel filter





Mini Hydraulic Excavator KD45 With Closed Cab ,  30KW Diesel Engine , 4000 KG Operation Weight

Model XINCHAI   A495BG / YANMER 4TNV88
Cylinders 4
Bore/Stroke 95×105mm
Displacement 2.977L
Fuel injection direct
Fuel injection pump Mechanical
Fuel  Diesel
Fuel filter Full flow
Cooling water-cooling
Horswpower(net) 30kw @2200rpm
Maximum torque(net) 165N.m @1650rpm
BOOM/ARM
Boom
Swing 75° left / 45°  right
Length 2745mm
Boom weight 180kg
Arm
Length 1600mm
Arm weight 80kg
UNDERCARRIAGE
Number of rollers
Top,each track 1
Bottom,each track 4
Gradability 58%(30°)
HYDRAULICS
Pumps(3) 2×Variable displacement piston pump+gear pump
Capacity- Maximum 2×45L/min+36L/min
System relief pressure-
Standard 24.5MPa+20.6MPa
Pilot control hydraulic system-
Pumps(1) Gear pump
Maximum capacity 10.7L/min
Relief pressure 3.5MPa
Control valves-
8 function multiple control valve
Pump #1 for right travel and boom function and bucket function
Pump #2 for left travel and arm function
Pump #3 for house swing and dozer function and boom swing
Pump #4 for pilot valve
Swing-
Motor(1) Fixed displacement axial piston design
Speed 0-12.5rpm
Brake Spring applied,hydraulically released with dual cushion relief
Tail swing radius 1630mm
Travel-
Motor(2) Two-speed axial piston design
Final drive Planetary gear reduction
Travel speeds- Forward/Reverse
Low 2.5km/h
High 4.5km/h
HYDRAULIC CYLINDERS
Boom cylinder(1)
Bore diameter 90mm
Rod diameter 45mm
Stroke 535mm
Arm cylinder(1)
Bore diameter 90mm
Rod diameter 45mm
Stroke 600mm
Bucket cylinder(1)
Bore diameter 80mm
Rod diameter 45mm
Stroke 600mm
ELECTRICAL
Voltage 12 volts
Alternator 40 amp
Batteries(1) 12V Heavy-duty
SERVICE CAPACITIES
Hydraulic tank
Refill capacity 80L
Total system 100L
Engine
w/filter change 6.5L
Fuel 70L
Radiator 6L
OPERATING WEIGHT
With 75kg operator 4000kg
Ground pressure 33KPa

A.  Overall height 2560mm
B.  Overall length 5550mm
C.  Track overall width 1628mm
D.  Track shoe width 300mm
E.  Upperstructure ground clearance 640mm
F.  Minimum ground clearance 345mm
G.  Center to center(idler to sprocket) 1750mm
H.  Track overall length   2230mm
I.  Length of Chassis 2500mm
J.  Backfill blade height 325mm
M.  Tail swing radius 1630mm
Working weight 4000kg
Ground pressure 33KPa

A.  Maximum dig radius 5720mm
B.  Dig radius at groundline 5595mm
C.  Maximum dig depth 3650mm
D.  Dump height 3585mm
E.  Overall reach height 5080mm
F.  Bucket rotation 175°
G.  Vertical straight wall dig depth 3000mm
H.  Lift above groud 165mm
J.  Drop below groud 355mm
K.  Mini swing radius 2245mm
Arm digging force 21KN
Bucket digging force 26KN



Water Cooling 4 Ton Excavator with Mechanical Fuel Injection Pump Full Flow Fuel filter

Water Cooling 4 Ton Excavator with Mechanical Fuel Injection Pump Full Flow Fuel filter
