Yanmar Diesel Engine 800KG Medium Sized Excavator for Rent / Home Use

China Yanmar Diesel Engine 800KG Medium Sized Excavator for Rent / Home Use supplier
Yanmar Diesel Engine 800KG Medium Sized Excavator for Rent / Home Use supplier Yanmar Diesel Engine 800KG Medium Sized Excavator for Rent / Home Use supplier Yanmar Diesel Engine 800KG Medium Sized Excavator for Rent / Home Use supplier Yanmar Diesel Engine 800KG Medium Sized Excavator for Rent / Home Use supplier

Large Image :  Yanmar Diesel Engine 800KG Medium Sized Excavator for Rent / Home Use

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: Ghost/ISO/SGS/CE
Model Number: KD08

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 10 working days after received L/C or your deposit
Payment Terms: Western Union, L/C, T/T
Supply Ability: 2000 units per month
Contact Now
Detailed Product Description
Product Name: Mini Excavator Operation Weight: 820KGS
Engine: Yanmar Rated Engine Power: 7.3 KW
Bucket Digging Force: 9.6 KN Max. Digging Reach: 2720 Mm
Max. Digging Depth: 1500 Mm Max. Digging Height: 2650 Mm
High Light:

excavator equipment rental

,

hydraulic attachments excavators

Yanmar Diesel Engine 800KG Medium Sized Excavator for Rent / Home Use

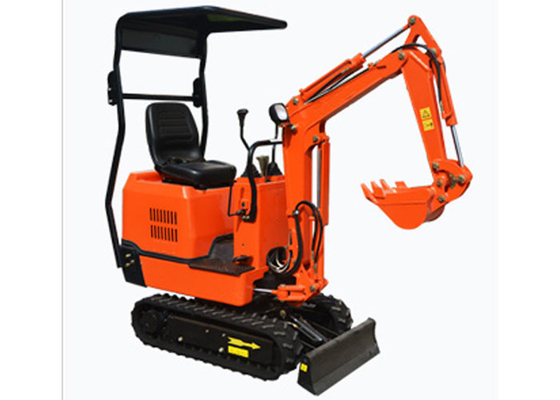

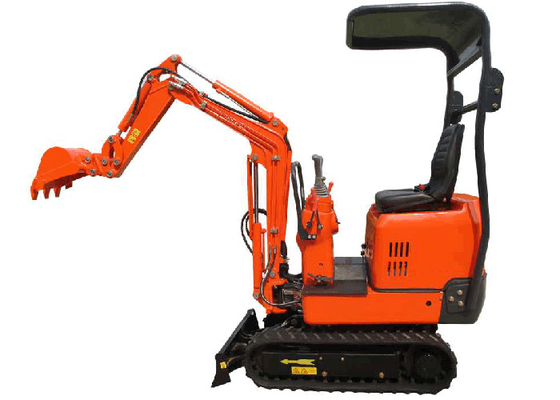

800KG Mini Hydraulic Excavator KD08 With 7.3KW Yanmar diesel engine



ENGINE
Model YANMER 2TNV70
Cylinders 2
Bore/Stroke 70×74
Displacement 0.569L
Fuel injection direct
Fuel injection pump Mechanical
Fuel Diesel
Fuel filter Full flow
Cooling water-cooling
Horsepower (net) 7.3kw @ 2400rpm
Maximum torque (net) 33N.m @ 1800rpm
BOOM/ARM
Boom
Swing 75° left / 45° right
Length 1350mm
weight 30kg
Arm
Length 700mm
weight 15kg
UNDERCARRIAGE
Number of rollers
Top,each track 0
Bottom, each track 3
Gradability 30°(58%)
HYDRAULICS
Pumps(2) Gear pump
Capacity-Maximum 2×12L/min
System relief pressure-Standard 16.5MPa
Control valves-
9 function multiple control vavle
Pump #1 for left travel and house swing and arm function
Pump #2 for right travel and boom function and bucket function
Swing-
Motor(1) Fixed displacement
Speed 9.2rpm
Brake Hydraulically released with dual cushion relief
Tail swing radius 820mm
Travel-
Motor(2) Fixed displacement axial piston design
Final drive Planetary gear reduction
Travel Speed 2km/h
HYDRAULIC CYLINDERS
Boom cylinder (1)
Bore diameter 50mm
Rod diameter 25mm
Stroke 320mm
Arm cylinder (1)
Bore diameter 50mm
Rod diameter 25mm
Stroke 310mm
Bucket cylinder (1)
Bore diameter 50mm
Rod diameter 25mm
Stroke 235mm
ELECTRICAL
Voltage 12V
Alternator 10amp
Batteries(1) 12V Heavy-duty
SERVICE CAPACITIES
Hydraulic tank
Refill capacity 16L
Total system 20L
Engine
w/filter change 1.5L
Fuel 9.5L
Radiator 2.5L
OPERATING WEIGHT
With 75kg operator,full fuel and standard equipment 820kg
Ground pressure 25kpa

A. Overall height 1350mm
B. Overall length 2760mm
C. width of upperstructure 760mm
D. Track overall length 1220mm
E. Track overall width shoes 820mm
F. Track shoe width 190mm
G. Center to center(inler to sprocket) 900mm
H. Upperstructure ground clearance 360mm
J.  Minimum ground clearance 160mm
K. Tail swing radius 820mm
L.  Backfill blade height 200mm
Working weight 820kg
Ground pressure 25kpa
Tail swing overhang

A.  Maximum dig radius 2730mm
B.  Dig radius at groundline 2650mm
C.  Maximum dig depth 1500mm
D.  Dump height 2000mm
E.  Overall reach height 2720mm
F.  Bucket rotation 174°
G.  Vertical straight wall dig depth 1040mm
H.  Lift above groud 105mm
J.  Drop below groud 210mm
K. Minimum rotation radius 1005mm
Arm digging force 8.5KN
Bucket digging force 9.6KN
