Product Details:
Payment & Shipping Terms:
|
Product Name: | Wheel Excavator | Operation Weight: | 8000KGS |
---|---|---|---|
Bucket Capacity: | 0.4 CBM | Rated Engine Power: | 56 KW |
Max. Torque: | 292 Nm | Max. Digging Reach: | 6545 Mm |
Max. Digging Depth: | 3890 Mm | Max. Digging Height: | 6637 Mm |
High Light: | construction equipment excavator,hydraulic attachments excavators |

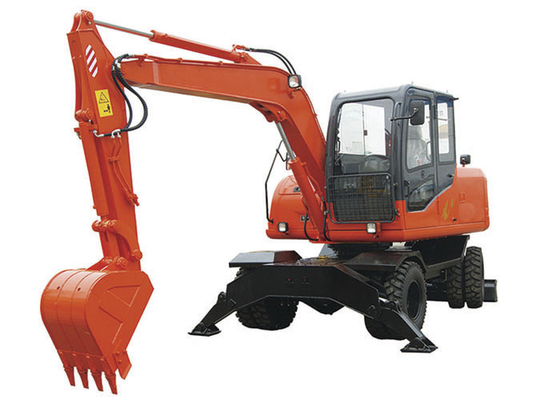

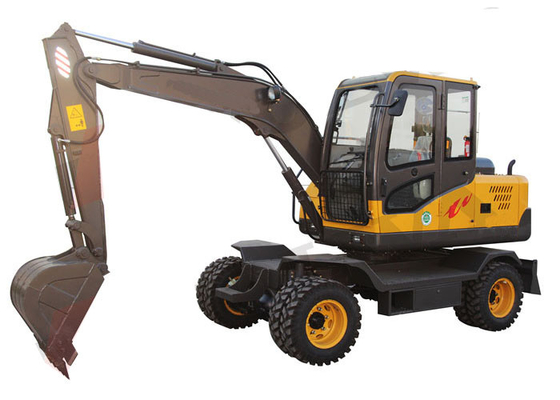

Heavy Equipment Excavator , 0.4 M3 Bucket Capacity 8 Tonne Wheeled Excavators
8000KG 0.4 CBM Bucket Wheel Excavator KD890-9A With 56KW diesel engine
Product feature:
1. Power strong, stable performance, reliable work, my company is mature models, with tire inflation interface, optional fuel filling machine.
2 Hydraulic system used by the main components for the international famous brand, independent of the pilot system, perfect matching, rational layout, highlighting the space inside the car.
3. Strengthen the turntable, arm length, with a greater range, wide adaptation to the environment.
4 . Stable chassis, with a shovel, a leg, after full hydraulic support, with full ground lifting capacity. Chassis with wash box, toolbox, butter bucket support tool.
5 The cab air-conditioning, audio, luxury seats, comfortable control.
6. Harness the standardization, neat, beautiful, convenient assembly view. Intelligent color screen, with a character display, the parameter can be easily read oil quantity, temperature, pressure, engine speed, mileage.
7. Shape independent design, stable atmosphere. Outside the open mechanism, easy to repair, maintenance. With a big arm working lamp, headlight, convenient for operation at night.

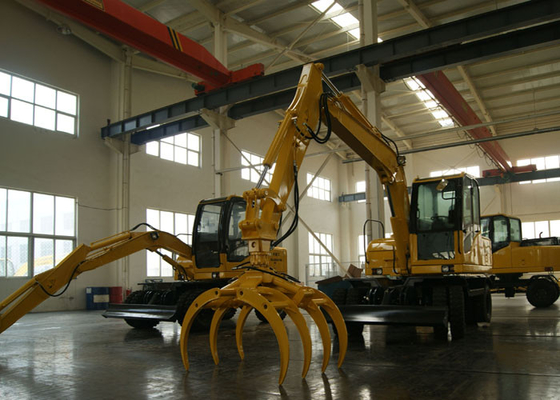

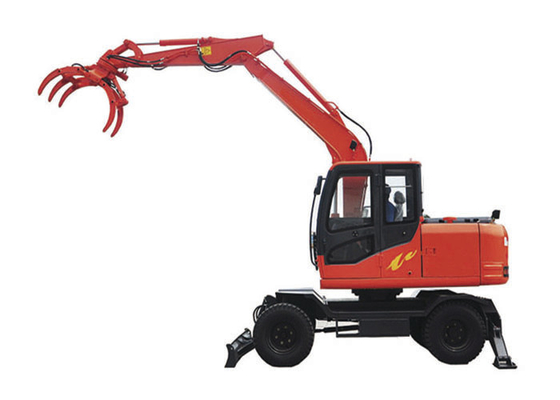

8 Optional gripper, hammer crusher, rotary devices and other equipment, realize multiple functions.
Product parameter:
SPECIFICATIONS |
||
Operating weight |
Kg |
8000kgs |
Engine model |
|
A498BZG-09 |
Engine power |
|
56 Kw/2000rpm |
Bucket capacity |
M3 |
0.4 |
Working pressure |
Mpa |
21 |
Rated flow |
L/min |
55*2 |
Swing speed |
rpm |
10 |
Travel speed |
Km/h |
0-30 |
Max. hauling force |
KN |
47 |
Max. torque |
N.m/rpm |
292/1600 |
Grade ability |
% |
25 |
Fuel tank |
L |
127 |
Hydraulic oil tank |
|
118 |
DIMENSIONS |
||
Upper structure width |
mm |
2140 |
Cab width |
mm |
950 |
Transportation length |
mm |
6450 |
Machine height |
mm |
2775 |
Overall height |
mm |
1600 |
Ground clearance(Bob-weight) |
mm |
1030 |
Tyre gauge |
mm |
Front1650 Rear 1610 |
Wheel shaft diameter |
mm |
2400 |
Mould board(width) |
mm |
2140 |
Mould board(height) |
mm |
310 |
Minimum ground clearance |
mm |
343 |
OPERATING SCOPE |
||
Boom length |
mm |
3500 |
Arm length |
mm |
1800 |
Max. digging reach |
mm |
6545 |
Max. digging depth |
mm |
3890 |
Max. digging height |
mm |
6637 |
Max. dumping height |
mm |
4865 |
Min. swing radius |
mm |
2489 |
Rear-end swing radius |
mm |
1989 |
Min, turning radius |
mm |
7250 |
Max. hade digging depth |
mm |
6360 |
