Big Torque Travelling Heavy Equipment Excavator with Tracked Pontoon Structure

China Big Torque Travelling Heavy Equipment Excavator with Tracked Pontoon Structure supplier
Big Torque Travelling Heavy Equipment Excavator with Tracked Pontoon Structure supplier Big Torque Travelling Heavy Equipment Excavator with Tracked Pontoon Structure supplier Big Torque Travelling Heavy Equipment Excavator with Tracked Pontoon Structure supplier Big Torque Travelling Heavy Equipment Excavator with Tracked Pontoon Structure supplier

Large Image :  Big Torque Travelling Heavy Equipment Excavator with Tracked Pontoon Structure

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: Ghost/ISO/SGS
Model Number: ZY150SD-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 10 working days after received L/C or your deposit
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500 units per month
Contact Now
Detailed Product Description
Product Name: Amphibious Excavator Operation Weight: 20000KGS
Bucket Capacity: 0.4 CBM Rated Engine Power: 89.3 KW
Max. Cutting Height: 11352 Mm Max. Digging Depth: 7360 Mm
Max. Vertical Digging Depth: 5419 Mm Max. Dumping Height: 9205 Mm
High Light:

excavator equipment rental

,

hydraulic attachments excavators

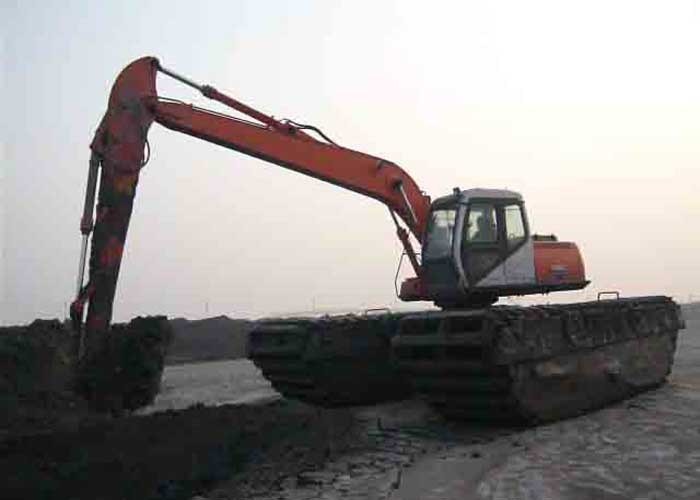

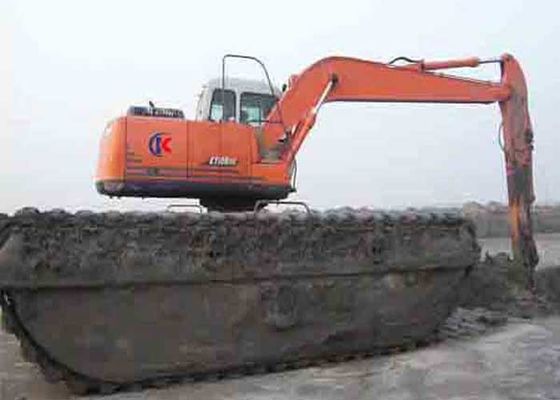

Big Torque Travelling Heavy Equipment Excavator with Tracked Pontoon Structure



20 ton 0.4 CBM Bucket Hydraulic Amphibious Excavator With ISUZU Engine 89.3KW rated power

Feature:



1. Tracked pontoon structure ensures low ground pressure so that it can travel and work on swamp and soft areas. It can be towed to move forward on water also.

2. Big torque travelling devices ensure strong driving force when turning and climbing.

3. The extendable chassis not only improves working stability, but also allows transportation of whole machine without dismantling.

4.  Big circular are structure on both ends of pontoon reduces travelling resistance.



Specifications



Operating weight

20000kg

Standard bucket capacity

0.4m3

Boom length

6100mm

Arm length

3900mm

Chain

2 chains

Engine

Model Isuzu

4BG1

Type

Turbe-charged

Power

89.3kW/2200rpm

Max. torque

449N.M at 1800rpm

No. of cylinders

4

Displacement

4.3L

Hydraulic system

Main Pump



Type

Variable displacement axial piston pumps

Max. displacement

2×63cm3/r

Max. flow



Working pressure

30MPa

Hydraulic motor



Slew

Fixed displacement axial piston motor

Travel

Variable displacement axial piston motors

Performance



Slew speed

13.6rpm

Min slew radius

3011mm

Max. travel speed high/low

3/2.1km/h

Gradeability

30°

Tractive effort

157.5kN

Max. digging force of bucket

72kN

Max. digging force of arm

51kN

Ground pressure

0.14kg/cm2

Tank capacity



Fuel tank capacity

217L

Hydraulic tank capacity

217L



WORKING RANGE

A Max. digging reach

10811mm

B Max. digging reach on ground

10481mm

C Max. digging depth

7360mm

D Max. vertical digging depth

5419mm

E Max. cutting height

11352mm

F Max. dumping height

9205mm

G Mini front slew radius

2914mm



Dimensions

A length of pontoon

7170mm

B ground clearance of platform

1935mm

C height of cabin

3764mm

D Boom transport height

3390mm

E overall length

10375mm

F rear swing radius

2319mm

G Track gauge

3629mm

H overall width

5120mm

I width of pontoon

1490mm

J min ground clearance

1192mm

K height of pontoon

1718mm

L max. upper structure width

2470mm

Big Torque Travelling Heavy Equipment Excavator with Tracked Pontoon Structure
