8.0m Width XCMG Multi - Function Asphalt Concrete Paving Laying Machine 0 - 14Km/h Paving Speed

China 8.0m Width XCMG Multi - Function Asphalt Concrete Paving Laying Machine 0 - 14Km/h Paving Speed supplier

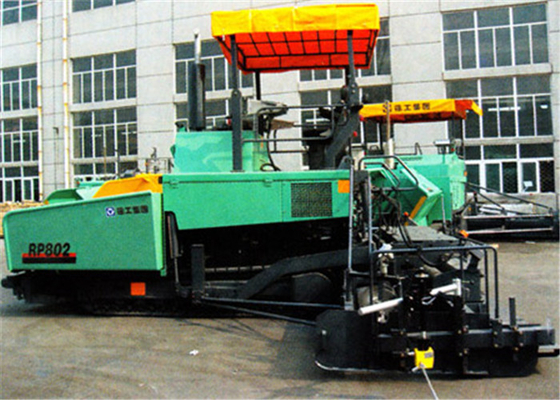

Large Image :  8.0m Width XCMG Multi - Function Asphalt Concrete Paving Laying Machine 0 - 14Km/h Paving Speed

Product Details:

Place of Origin: China
Brand Name: XCMG
Certification: CE/SGS
Model Number: RP802

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: Negotiation
Packaging Details: Nude packing in container.
Delivery Time: 25-30working days after received your payment
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500pcs per month
Detailed Product Description
Basic Working Width: 3m Max. Working Width: 8m
Max. Paving Thickness: 380mm Paving Speed: 0-14Km/h
Hopper Capacity: 13tons Gradient Ability: 20%
Rated Output: 112KW Dimensions: 6230x2500x3855mm
Weight: 15.5~21.5tons Generator Power: 20KW



8.0m Width XCMG Multi - Function Asphalt Concrete Paving Laying Machine 0 - 14Km/h Paving Speed



8.0m XCMG Multi - Function Asphalt Concrete Paver RP802 With 13 Tons Hopper Capacity And Deutz 112KW  Diesel engine



8.0m XCMG Multi-Function Asphalt Concrete Paver RP802



Specifications:



ltem

Unit

Parameter

Basic Working Width

m

3.0

Max working Width

m

8.0

Max Paving Thickness

mm

380

Paving Speed

m/min

0~14

Traveling Speed

km/h

0~3.0

Theoretical Productivity

t/h

600

Hopper Capacity

t

13

Gradient Ability

%

20

Smoothness

mm/3m

3

Engine Type



BF4M1013C

Rated Output

km

112

Speed

rpm

2300

Generator Power

kw

20

Weight

t

15.5~23.5

Overall Dimension

mm

6230×3000×3855



Description:



1 . This type of machine is the first one to have the most advanced technology, such as computer –                controlling system, sonic sensor, electric auto-leveling system, temper and electric-heat, Which

     makes the machine features with the same quality and reliability as that of the imported machine.

2 . Adopted with an advanced, mature and reliable Deutz BF4M1013C water-cooling Diesel Engine,

     with a strong power

3 . Auto-leveling system with electric auto-leveling technique;

4 . Driving system with control for right and left hand separately; computer-control; auto-control

     technology for paving with constant speed;

5 . Material level controlled with sonic sensor technology, so as to achieve full proportional even material

    feeding;

6 . 575 Extendable(Conventional)Screed with specific technology of temper bars Pusling-vibration and

    electric-heating;





Applications:



RP802 Multi-function Road Paver is a construction machine mainly used for the paving project on the

road base and surface for highway of various kind of material. RP802 becomes the ideal equipment

for the paving job on stabilized soil for road base and base and asphalt concrete for road surface.



Competitive Advantage:



1 . Centralized lubricating system ensures automatic and even lubricant feeding to bearings in high

    temperature

2 . Distributing auger, made of high wearing-resistant alloy material, distributing bottom plate

    and screed bottom plate adopt with imported wearing-resistant material

3 . Control panel shows directly and clearly all working functions, paving, traveling speed, and could be

     mounted on either on right or left

4 . The complete machine features with high automation, easy and convenient operation, excellent

      construction performance with high efficiency.
5 . Traveling crawlers with large contacting surface ensure safe and reliable working performance even

      on poor conditioned roads;



8.0m Width XCMG Multi - Function Asphalt Concrete Paving Laying Machine 0 - 14Km/h Paving Speed
