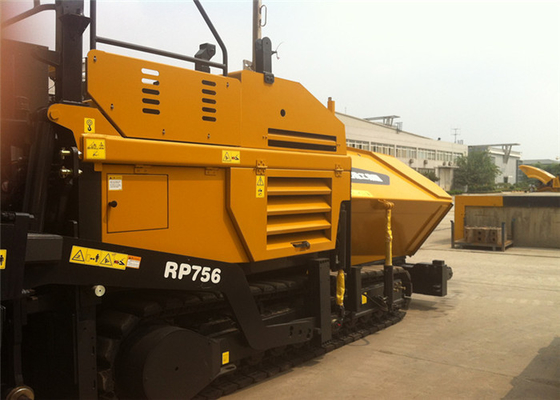

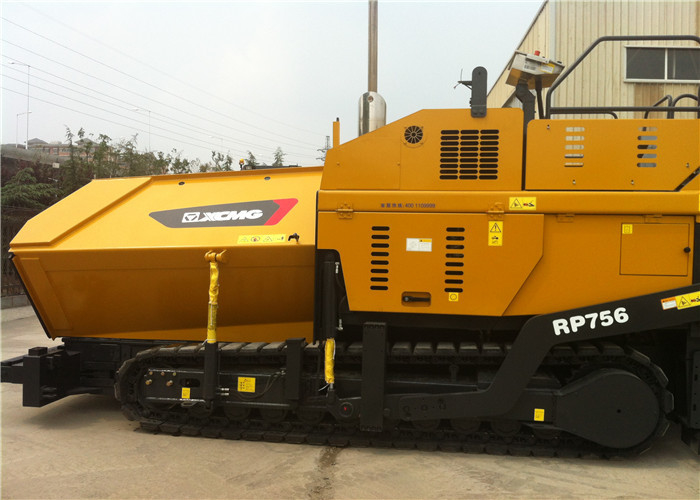

140KW Diesel Engine XCMG Concrete Asphalt Paver Machine With 330mm Pacing Thickness

China 140KW Diesel Engine XCMG Concrete Asphalt Paver Machine With 330mm Pacing Thickness supplier

Large Image :  140KW Diesel Engine XCMG Concrete Asphalt Paver Machine With 330mm Pacing Thickness

Product Details:

Place of Origin: China
Brand Name: XCMG
Certification: CE/SGS
Model Number: RP756

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: Negotiation
Packaging Details: Nude packing in container.
Delivery Time: 25-30working days after received your payment
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500pcs per month
Detailed Product Description
Basic Working Width: 3m Max. Working Width: 7.5m
Max. Paving Thickness: 330mm Paving Speed: 0-14Km/h
Hopper Capacity: 14tons Gradient Ability: 20%
Rated Output: 140KW Dimensions: 6178*3000*3855mm
Weight: 16.5~23.5tons Generator Power: 28KW

 140KW Diesel Engine XCMG Concrete Asphalt Paver Machine With 330mm Pacing Thickness



7.5m XCMG Multi-Function Asphalt Concrete Paver RP756



Specifications:



Item

Unit

Parameter

Item

Unit

Parameter

Basic Working width

m

3.0

Slop leveling Tolerance

%

0.03

Max. working width

m

7.5



Max. paving thickness

mm

330

Engine type

D6114

BF6M1013E

Paving speed

Km/h

0-14

Rated output

140KW

137KW

Traveling speed

Km/h

0-3.0

Rated Rev.

2400rpm

2300rpm

Theoretical Productivity

t/h

600

Generator power

KW

28

Hopper capacity

T

14



Gradient Ability

%

20

Weight

T

16.5 ~23.5

Smoothness

Mm/3m

3

Overall dimension

mm

6178x3000x3855



Description:



1 . Driving system with dual control for the right and left tracks separately and the automatic computer

     control technology ensure the paving speed constantly.

2 .  Adopted with an advanced, mature, reliable and powerful D6114 or Deutz BF6M1013E diesel engine

3 . Four sets of separate full hydraulic transmissions are adopted in the conveyor auger system both on

     the right and left side, and the ultra sonic sensor technology controls material level.





Applications:



RP756 Multifunction paver is a construction machine mainly used for the paving project on the road

base and surface for highway of various kinds of material.



Competitive Advantage:



1 . Material augers can move up and down expediently so as to adapt different paving thickness and

     reduce material segregation

2  .Auto-leveling system with electric auto-leveling technology.

3 . The technologies of dual tamper bars, eccentric vibrators and electric-heating system are adopted

      in the screed.

4 . Conveyor bottom plates, distributing augers, and screed bottom plates are made of high

     wearing- resistant alloy and imported wearing-resistant material.

5 . Control panel shows directly and clearly all working parameter, and could be mounted either on right

     or left side.

6 . The mobile auto-leveling reference beam and contactless ultra sonic sensors could be

     available as an option.



140KW Diesel Engine XCMG Concrete Asphalt Paver Machine With 330mm Pacing Thickness
