Cummins Engine Heavy Equipment Excavator with LCD Monitor SSM Hydraulic Work Modes

China Cummins Engine Heavy Equipment Excavator with LCD Monitor SSM Hydraulic Work Modes supplier

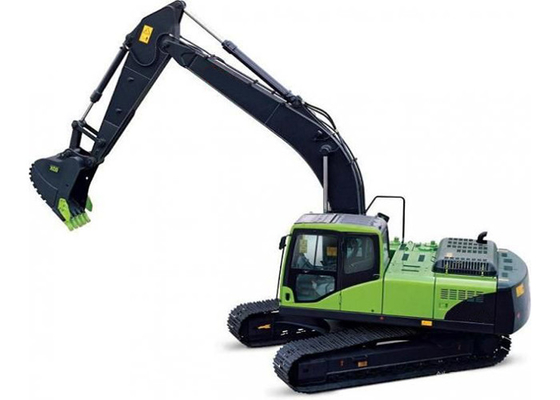

Large Image :  Cummins Engine Heavy Equipment Excavator with LCD Monitor SSM Hydraulic Work Modes

Product Details:

Place of Origin: China
Brand Name: KUDAT
Certification: Ghost/ISO/SGS
Model Number: XCG240LC-8B

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing
Delivery Time: 10 working days after received L/C or your deposit
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500 units per month
Detailed Product Description
Product Name: Crawler Excavator Operation Weight: 23320KGS
Bucket Capacity: 1.2 CBM Rated Engine Power: 125 KW@2100 Rpm
Max. Torque: 637.9 Nm Displacement: 6.494L
Max. Bucket Digging Force: 152.7 KN Max. Arm Digging Force: 94KN

Cummins Engine Heavy Equipment Excavator with LCD Monitor SSM Hydraulic Work Modes





24 ton 1.2 CBM Bucket Hydraulic Crawler Excavator With Cummins Engine With John Deer Technology

  • Advanced John Deere Phoenix Electronic Control System provides high electrical system reliability.  Electrical system uses minimal relays and unsealed connections.  Most circuits are controlled by the Flex Load Controller (FLC).  Monitor, Sealed Switch Module (SSM), and FLC all communicate on Controller Area Network (CAN), which minimizes number of wires.
  • Powered by proven, reliable Isuzu engines.  The 210-8B and 240-8B use a 6.5 L turbocharged engine and the 330-8B uses a 7.8 L turbocharged engine.  All engines are Tier 2/Stage II emissions compliant.
  • Full color Liquid Crystal Display (LCD) monitor is conveniently located and easy to view.  It offers superior onboard diagnostics that help technicians troubleshoot problems.  No laptops or cables required for diagnostics.
  • Sealed Switch Module (SSM) conveniently combines most cab switches into one central location.  SSM is well protected from dust and moisture, and it has a much longer life cycle than rocker switches.  It uses only four wires to control its functions for simplicity and increased uptime.
  • Rock guard plating on the back side of the arm provides additional protection when curling a loaded bucket.  It protects the arm structure resulting in more uptime.



   Low Daily Operating Cost

  • Auto idle feature lowers engine rpm, when the operator does not activate hydraulic functions for five seconds.  It reduces fuel consumption and lowers jobsite noise.  Engine speed returns to the set rpm, when the operator resumes operating a hydraulic function.
  • Three operator selectable hydraulic work modes allow the operator to match the machine power to the job at hand.  Maximum engine speed and pump displacement change with each work mode to optimize machine efficiency and fuel consumption for each job.
  • Grouped service points simplify daily maintenance, making it fast and easy to check fluid levels and grease the machine each day.
  • Remote mounted engine oil and fuel filters in the hydraulic pump compartment allow for excellent accessibility, making routine oil and filter changes easy to complete.

Rated bucket capacity

1.2 m3

Operating weight

23320 kg

Engine



Model



Rated output

125 kW@2100 rpm

Bore × stroke

105x125 mm

Displacement

6.494 L

Max. torque

637.9 Nm

Batteries

2×12 V

Hydraulic System



Main Pumps

2xVariable displacement axial piston pumps

Max. flow

2x235 L/min

Hydraulic motors



Travel motors

2x Variable displacement axial piston motors

Swing motors

1x Fixed displacement axial piston motor

Relief valve setting



Implement circuit

31.4 Mpa

Swing circuit

25.5 Mpa

Travel circuit

31.4 Mpa

Pilot circuit

3.9 Mpa

Max. bucket digging force

152.7kN

Max. arm digging force

94 kN

Swing System



Swing speed

12.9 rpm

Drive



Max. drawbar pull

200 kN/20408kg

Travel speed



High speed

5.5 km/h

Low speed

3.2 km/h

Grade ability

35

Undercarriage



Carrier rollers

2x2

Track rollers

2x9

Track pads

2x49

Shoe width

600 mm/800mm

Ground pressure

47 kPa

Capacities



Fuel tank

390 L

Hydraulic tank

190 L

Hydraulic system

220L

Cooling system

28 L

Engine oil

21.5 L

Travel reduction unit

2x5 L

Swing teduction unit

4.4 L

Working Ranges



Max. cutting height

9360 mm

Max. dumping height

6702 mm

Max digging depth

6616 mm

Max. vertical wall digging depth

5473 mm

Max. digging reach

10088 mm

Max. digging reach on ground

9920 mm

Min. front swing radius

3951 mm

Standard boom

5700 mm

Standard arm

2900 mm

Dimensions



Overall length

9786 mm

Overall height of boom

3256 mm

Overall Width

2980 mm

Overall height of cab

2946 mm

Counterweight clearance

1130 mm

Min. ground clearance

468 mm

Tail swing fadius

3030 mm

Track ground length

3640 mm

Track length

4440 mm

Track gauge

2380 mm

Track overall width

2980 mm
