Hydraulic Tipping Hopper Mobile Diesel Concrete Mixer Machine For Concrete Mixing Works

China Hydraulic Tipping Hopper Mobile Diesel Concrete Mixer Machine For Concrete Mixing Works supplier
Hydraulic Tipping Hopper Mobile Diesel Concrete Mixer Machine For Concrete Mixing Works supplier Hydraulic Tipping Hopper Mobile Diesel Concrete Mixer Machine For Concrete Mixing Works supplier

Large Image :  Hydraulic Tipping Hopper Mobile Diesel Concrete Mixer Machine For Concrete Mixing Works

Product Details:

Place of Origin: China
Brand Name: Visbull
Certification: CE/SGS/ISO9001
Model Number: RDCM350-11DHA

Payment & Shipping Terms:

Minimum Order Quantity: 1Unit
Price: Negotiation
Packaging Details: Nude packing in container.
Delivery Time: 25-30 working days after received your payment
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Capacity Of Discharge: 350L Capacity Of Loading: 560L
Capacity Of Water Tank: 110L Capacity Per Hour: 10-14m3/h
Power Of Diesel Engine: 15HP Max. Towing Speed: 20Km/h
Overall Size: 3250*2240*3200mm Weight: 1790kg
Drum Rotating Speed: 13r.p.m Power Source: Diesel Engine
High Light:

cement concrete mixer machine

,

cement concrete mixture machine

Hydraulic Tipping Hopper Mobile Diesel Concrete Mixer Machine For Concrete Mixing Works



350L Mobile Diesel Concrete Mixer With Hydraulic Tipping Hopper For Concrete Mixing Works



Specifications:



Model

RDCM350-11DHA(JZR350)

Capacity of discharge

350L

Capacity of loading

560L

Capacity of water tank

110L

Drum rotating speed

13r.p.m

Capacity per hour

10-14m3/h

Power of diesel engine

15HP

Power source

Diesel engine, single cylinder, water-cooled with radiator with battery starter

Max. towing speed

20Km/h

Overall size

3250*2240*3200mm

Weight

1790kg



Description:



Diesel Concrete Mixer  is  mixer of double conical drums which discharge concrete by reverse-rotation,

suitable for mixing plastic and semi dry & hard concrete with the size of aggregate up to 60mm. Mixing is

carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing

drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.

Diesel Concrete Mixer is featured by diesel engine power, wire rope tipping hopper, novel construction,

advanced performance, high productivity, high mixing quality, compact structure, low energy consumption,

simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction

sites, road construction, bridge work and small-sized prefabricated-component factories etc.



Applications:



RDCM350-11DHA concrete mixer with Hydraulic type diesel engine is suitable for construction sites,

roads, bridge constructions and fabrication sites of small prefabricated concrete members.



Competitive Advantage:



The hydraulic concrete mixer is designed according to the disadvantage of most quick-wear parts

and great labour intensity in feeding system for drum mixer.The principle of feeding system is main

electrical motor driving the gear pump .To controlled the hydraulic ram by hand-operated direction valve.

There is feeding stable, simple to use & less maintenance cost.Hydraulic mixer is the ideal substitute

produces for general mixer.This series of products belongs to gravity type& bipyramid, mobile concrete

mixers.They reverse the material and can mix plastic and low fluid concretes. They are suitable in general

construction sites, path bridge buildings, middle and small scale concretes component factories

The production efficiency is high, the mixing quality is good. The structure is reasonable ,high

automaticity, They are also easy to be moved & operated.

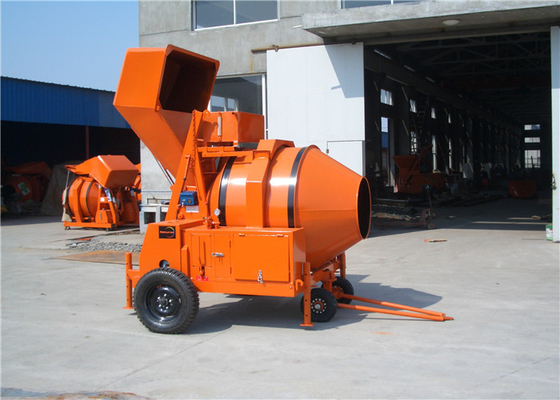

Hydraulic Tipping Hopper Mobile Diesel Concrete Mixer Machine For Concrete Mixing Works

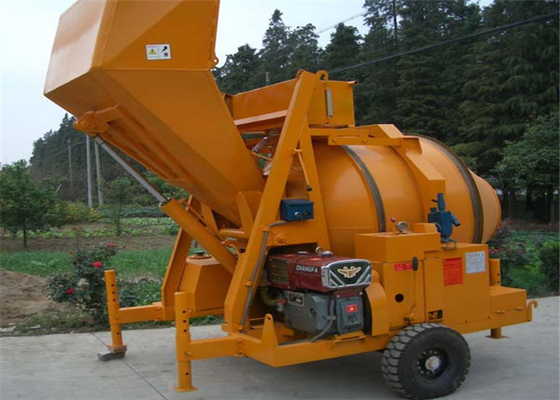

Hydraulic Tipping Hopper Mobile Diesel Concrete Mixer Machine For Concrete Mixing Works
