Diesel Engine Motor Grader Machine , Safe 215HP Rated Power Compact Road Grader

China Diesel Engine Motor Grader Machine , Safe 215HP Rated Power Compact Road Grader supplier

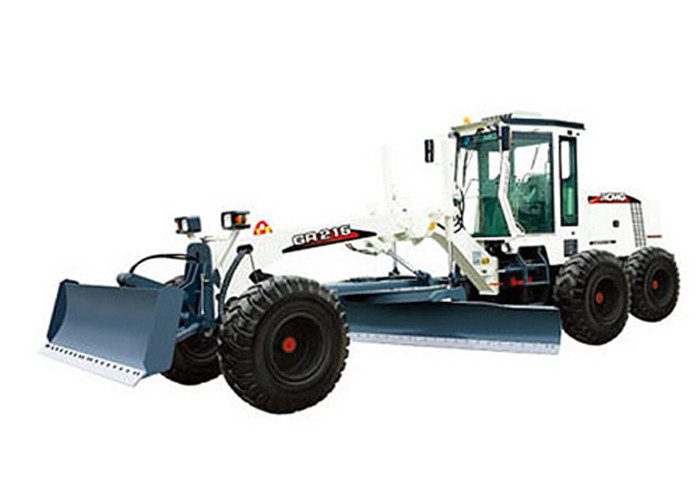

Large Image :  Diesel Engine Motor Grader Machine , Safe 215HP Rated Power Compact Road Grader

Product Details:

Place of Origin: China
Brand Name: XCMG
Certification: ISO
Model Number: GR215A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Naked packing in container
Delivery Time: 10 working days after received L/C or your deposit
Payment Terms: L/C at sight, T/T or western Union
Supply Ability: 1500 units per month
Detailed Product Description
Engine Model: Cummins 6CTA8.3-C215-Ⅱ Rated Power/speed: 160/2200kW/rpm
Dimension(LxWxH): 8970×2625×3470mm Operating Weight(Standard): 16100kg
Maximum Lift Above Ground: 450mm Max. Gradeability: 20%
Tire Inflation Pressure: 260 KPa Working Hydraulic Pressure: 16 MPa
Transmission Pressure: 1.3~1.8MPa Maximum Depth Of Cutting: 500mm

Diesel Engine Motor Grader Machine , Safe 215HP Rated Power Compact Road Grader





XCMG BRAND GR215A MOTOR GRADER ROAD CONSTRUCTION MACHINERY WITH CUMMINS ENGINE AND 215HP RATED POWER



Description:

GR Series Motor Grader mainly for roads, airports, and other large areas of farmland floor leveling and trenching, slope scraping, bulldozing, scarification, snow removal and other operations. It is under construction and water conservancy construction defense engineering, mine construction, urban and rural roads construction, farmland improvement and other necessary construction machinery.



· CUMMINS fuel injection diesel engine (Tier3), low noise, low emissions.

· ZF electro-hydraulic control power shift box, flexible and easy to manipulate.

· Three-drive rear axle with NO-SPIN automatic limited slip differential, stable drive.

· Front wheel hydraulic auxiliary drive system with rear gear interlock control, the machine can achieve the six, four and two drivers.

· Dual-circuit hydraulic brake system, safe and reliable.

· ROPS & FOPS cab, equipped with electric washing windows and demister, dual heating and air conditioning, automatic ventilation.

· Machine by CE certification, in line with European safety and environmental protection requirements.

* Optional components: front bulldozing plate, front scarification harrow, rear ripper, ball turntable, automatic leveling system.





Specifications:

Type

GR215A

Basic specification

Engine model

Cummins 6CTA8.3-C215-Ⅱ

Rated power / speed

160/2200kW/rpm

Dimension(L×W×H)(Standard)

8970X2625X3300mm

Operating weight(Standard)

16100kg

Tire size

17.5-25

Min. ground clearance

430mm

Wheel base

W

2156mm

Distance between front and rear axles

6219mm

Distance between middle and rear wheels

1538mm

Operating specification

Max. steering angle of front wheels

±49°

Max. lean angle of front wheels

±17°

Max. oscillation angle of front axle

±15°

Frame articulation angle

±27°

Min. turning radius using articulation

7.3mm

Blade

Maximum lift above ground

450mm

Maximum depth of cutting

500mm

Maximum blade position angle

90°

Blade cutting angle

28°-70°

Circle reversing rotation

360°

Moldboard width*height

4270×610mm

Performance specification

Traveling speed. forward

5,8,11,19,23,38km/h

Traveling speed. reverse

5,11,23km/h

f=0.75 Max. tractive force

126kN

Max. Grade ability

25%

Tire inflation pressure

260Kpa

Working system pressure

18Mpa

Transmission Pressure

1.3-1.8

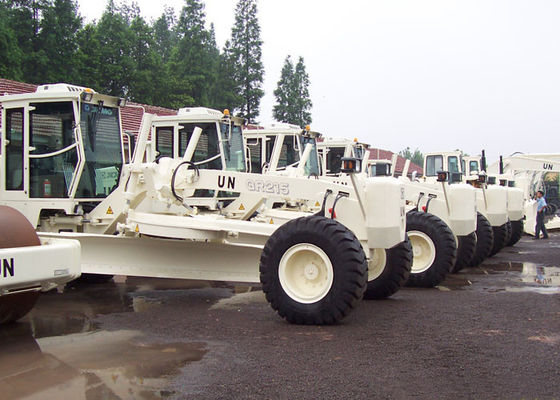

Diesel Engine Motor Grader Machine , Safe 215HP Rated Power Compact Road Grader

Diesel Engine Motor Grader Machine , Safe 215HP Rated Power Compact Road Grader

Diesel Engine Motor Grader Machine , Safe 215HP Rated Power Compact Road Grader

Diesel Engine Motor Grader Machine , Safe 215HP Rated Power Compact Road Grader
