Product Details:
Payment & Shipping Terms:
|
| Payload: | 3000kgs | Skip Capacity: | 1500L |
|---|---|---|---|
| Chassis: | Articulated Frame | Engine: | Deutz F3L912 Air - 3 |
| Driving: | 4*4 | Gradient: | 36% |
| Turning Radius: | 4.5m | Dimensions: | 4980*2100*2980mm |
| Weight: | 3000kgs | Tipping System: | Hydraulic Tipping Hopper |
| Color: | Yellow | Rated Power: | 38KW |
| High Light: | tracked wheelbarrow hire,power assisted wheelbarrow |
||

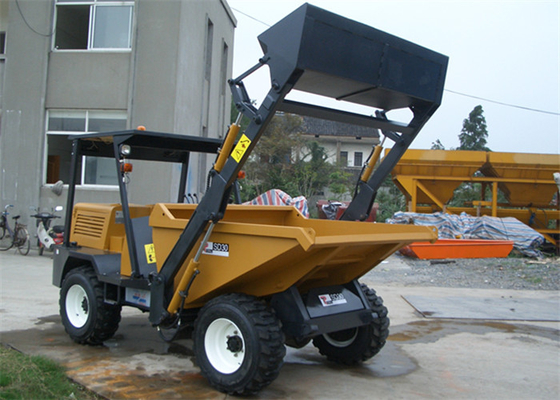

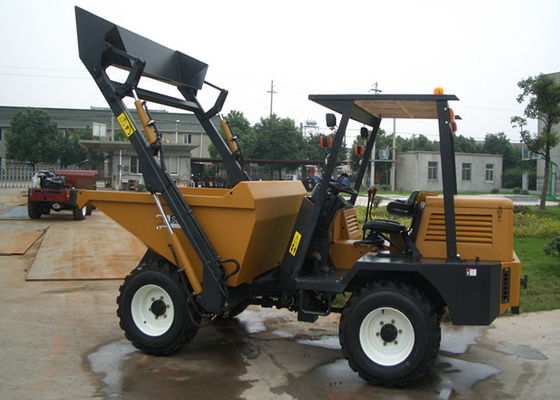

Self Loading Shovel Diesel 3 tons 4WD Mini Concrete Dumper For Site Works / Building Construction
3tons 4WD Diesel Mini Concrete Dumper With Self Loading Shovel
Specifications:
|
Payload |
3000kg |
||||||
|---|---|---|---|---|---|---|---|
|
Drive Model |
4*4 |
||||||
|
Skip Capacity |
1500L |
||||||
|
Wheel Base(mm) |
2000 |
||||||
|
Min Ground Clearance(mm) |
≥248 |
||||||
|
Dry Mass(Kg) |
3000 |
||||||
|
Tyres |
Front Wheel |
12-16.5 |
|||||
|
|
Rear Wheel |
12-16.5 |
|||||
|
Engine |
Model |
DEUTZ F3L912 |
|||||
|
|
Power |
38KW2500rpm |
|||||
|
Max.speed |
27.2km/h |
||||||
|
Minimum Turning Radius |
4.5m |
||||||
|
Weight |
3000kgs |
||||||
|
Self Loading shovel |
Volumetric Capacity |
250L |
|||||
|
|
Load Capacity |
450kgs |
|||||
|
Dimensions |
4980*2100*2980mm |
||||||
|
Tipping Systern |
Hydraulic Tipping Hopper |
||||||
|
Clutch |
Constant-contact, single-disc, dry clutch |
||||||
|
Brake |
Drum type with hydraulic control |
||||||
|
Steering Gear |
Hydraulic follow-up Service |
||||||
|
Gear Box With |
Four forward speeds and one reversed speed |
||||||
|
Ground Speed (Km/H) |
1st Gear |
4.26 |
|||||
|
|
2nd Gear |
8.8 |
|||||
|
|
3rd Gear |
16.14 |
|||||
|
|
4th Gear |
27.2 |
|||||
|
|
Reverse |
3.48 |
|||||
|
Minimum Turning Radius (m) |
4.225 |
||||||
|
Max, Grade Ability (%) |
36 |
||||||
|
Electric Starting |
Yes |
||||||
|
|
|||||||
|
Container Loading |
|||||||
|
20GP container can be loaded with |
1Unit |
||||||
|
40GP container can be loaded with |
3Units |
||||||
Description:
1 . Wheel type mini dumper
2 . With power steering and powerful 38KW engine, it's easier to move at slope or rugged area.
3 . with transmission for car, it's possible to change speed during travel.
4 . Efficiency of transportation by transportation, loading, unloading and dumping ability.
5 . 4*4 driving articular frame with hydraulic steering
6 . Beinei Diesel Engine By DeutZ Tech., F3L912,50HP,air cooling type.
7 . Self Loading Shovel: 450kgs / 250L.
Applications:
Dumpers are widely used in many different of site works , such as the construction industry,
the factory floor , battlefield ,
protecting road section , the municipal engineering , underground mines and so on .
Competitive Advantage:
1 . As a low volume, short distance transport of bulk materials for small site dumpers, because
of its easy operation, small
turning radius can be used in a narrow environment, etc,.
2 . Full Cover of Diesel Engine
3 . Strong and Heavy Duty Frame and Chassis
4 . Bucket can be full automatically tipped by hydraulic cylinder
5 . Direction change of dumper can be easily controlled by hydraulic steering wheel
